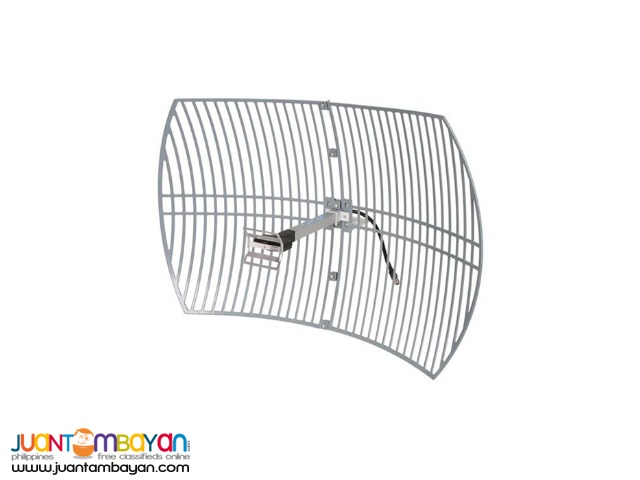

SPECIFICATIONS OF TP-LINK TL-ANT2424B 2.4GHZ 24DBI GRID PARABOLIC ANTENNA
| FREQUENCY | 2.4GHz |
| GAIN | 24dBi |
| VSWR(MAX.) | 1.5:1 |
| HPBW/H( °) | 10 |
| HPBW/V( °) | 14 |
| POLARIZATION | Linear; Vertical |
| TYPE | DIRECTIONAL |
| CONNECTOR TYPE | N Female(Jack) |
| Extended Cable/Length | 30 cm |
| MOUNTING | POLE MOUNT |
| APPLICATION | OUTDOOR |
| APPROXIMATE RANGE AT 1/11/54MBPS | 56km/31.5km/4.44km |
| OPERATING TEMP. | -40℃~60℃(-40℉~140℉) |
| STORAGE TEMP. | -40℃~60℃(-40℉~140℉) |
| OPTIONAL ACCESSORY | TL-ANT24EC6N TL-ANT24EC12N TL-ANT24SP TL-ANT24PT |
| PACKAGE CONTENTS | 24dBi Grid Parabolic Antenna Installation mounting kits User Guide |
| WARRANTY | 1 Year Manufacturer’s Warranty |
WHAT'S IN THE BOX
| TP-LINK TL-ANT2424B 2.4GHz 24dBi Grid Parabolic Antenna | 1 |
| POWER CORD | 1 |
| INSTALLATION GUIDE | 1 |
| RACKMOUNT KITS | 1 |
