Solar Cable
Model no. PV1-F
Photovoltaic Power Cable ,TUV Single core Solar PV Cable Application Double insulation ,electron-bean cr -
Material：TC/XLPE/XLPE
Application
Double insulation ,electron-bean cross linked cables for photovoltaic power station
Construction
Construction :Tinned copper, according to the VDE 0295/IEC 60228,Class 5
Insulation :Polyolefin copolymer electron-bean cross-linked
Outer sheath:Polyolefin copolymer electron-beam cross-linked

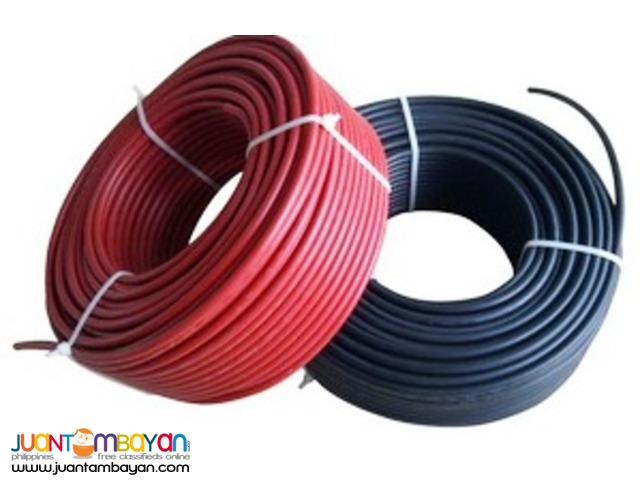

Sheath color :Black And Red
Technique Specification
Nominal Voltage :Uo/U=600/1000VAC 1000/1800VDC
Test Voltage: 6500V,50Hz 5Min
Temperature Rating 45℃ up to +125℃ -40F up to +257F
Ambient Temperature 25years (TUV)
-40℃ up to 90℃
-40F up to +194F
Max short Circuit temperature 280℃，+536F
Bending Radius
Fixed installation >4X
Occasionally moved >5X
Material Properties/Standards
Fire performance :IEC 60332-1
Smoke emission:IEC 61034 EN 50268
Low fire load:Din 51900
Approvals:TUV 2PfG 1169/08.2007 PV1-F
Application Standards
UNE 211 23,UNE 20.460-5-52 UTE 32-502
Rated voltage
AC:600/1000V
DC:900/1800V
Insulation material
Special polyolefin, Cross linked
Sheath material
Modified copolymer, Cross linked
Conductor material
Class 5 flexible tinned copper to IEC 60228
Cores
1-core;Twin core; Multi-core
Operating temperature
-40℃~120℃
Min bending radius
4 x overall diameter
6mm Black..................PhP 75.00 per meter
6mm Red....................PhP 75.00 per meter FOB-Caloocan City basis or pick up price from our Caloocan City, Metro-Manila location. Courier or delivery charge will apply if not picked up. We do not do meet ups nor C.O.Ds. Full CASH prepayment via bank deposit is required before we ship out. We ship worldwide. Shipping costs is shouldered by the buyer.
Price is subject to E-VAT and to change without prior notice and product's availability is subject to prior sales.
Domestic resell, dealership and Export/Import inquiries are welcome. Minimum order quantity may apply. Contact us for details.
