PRODUCT DESCRIPTION:

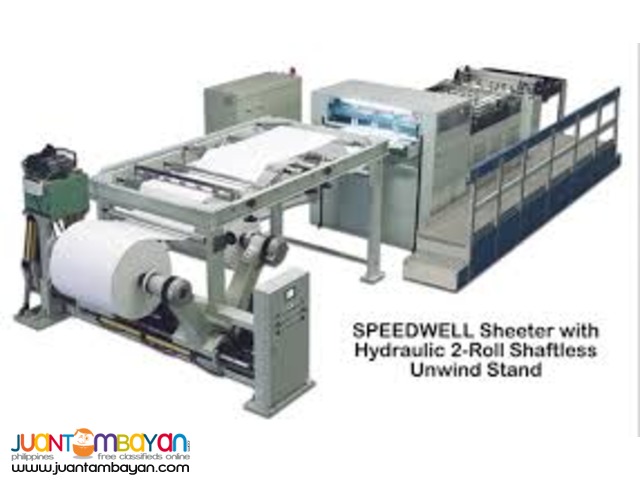

sheeting unit converts roll/s to sheets. The cutting system is a fly-and-dead (single rotary) knife configuration. The web passes through the in-feed guide rollers, a decurler and an optional beater roll. It is then drawn into the cutting unit by a rubber nip roll with spreader grooves pressing against the driven bottom steel roller. A pair of pneumatic cylinders presses the top nip roll down against the steel cylinder. An air pressure regulator-filter-lubricator unit regulates, cleans and lubricates air supply. The rotary drum cutter, the main component of the sheeting unit, is machined from vibration-absorbing, ribbed cast iron cylinder and is dynamically-balanced and turns on heavy duty self-aligning spherical roller bearing. High-Speed Steel (HSS) sheeter blades are installed in the cutting system that consists of a rotating upper knife operating against a fixed lower blade creating a scissor-type cutting action. The angle of the cutting head is adjustable to produce precisely perpendicular-cut sheets. The knife drum cutter is driven by Japanese Yaskawa servo motor via Siemens PLC through LCD Touch Screen Control Panel for instant change of job cut lengths instantly
For further inquiry please kindly Call Benito Tan @ 0948-8234853 (SMART) / 0977-3421860 (GLOBE) or Mobile Land Line Number 736-6359
