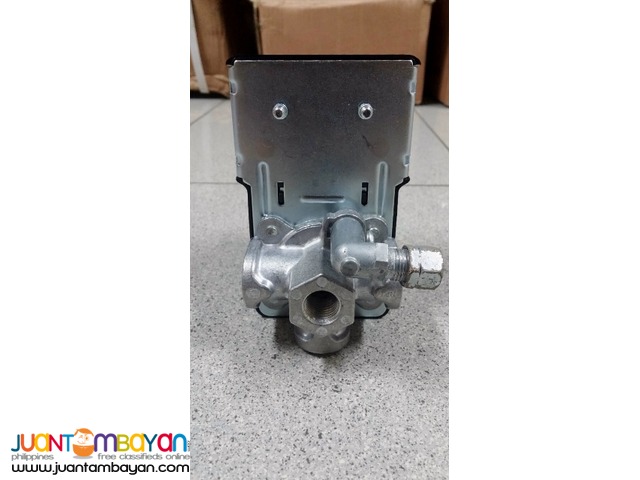

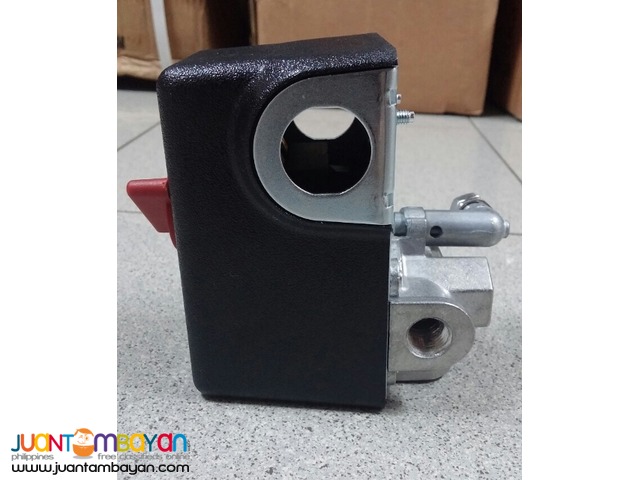

Condor USA MDR-11 Series Pressure Switch 4 Port, 105-135 PSI, 26 Amp

Air Compressor Pressure Switches
For all global air compressor and water applications
Rotatable unloader valve simplifies retrofit onto compressors
Diaphragm actuated
MDR-11 Series
UL Listed and CSA Certified
DPST switch
Rated 26A
Temp. range: -22° to 257°F

Pressure Switch, Air Compressor, Standard Action, Factory On/Off Set 105 to 135 PSI, Pressure Range 25 to 160 PSI, Adjustable Differential, Differential Pressure 25 to 65 PSI, Burst Pressure 500 PSI, Port Type 4-Port 1/4 In NPT (Female), 1/4 In Compression Unloader, Diaphragm Actuation Type, Manual Switch Action Auto/ Off, Single Phase, DPST Contact Type, 26 Amps, NEMA 1 Enclosure, Temp Range -22 to 257 F, Standards UL/CSA

Description:


Type: Air Compressor
Item: Pressure Switch
Action: Standard
Factory On/Off Setting (PSI): 105 to 135
Pressure Range (PSI): 25 to 160
Differential: Adjustable
Differential Pressure (PSI): 25 to 65
Burst Pressure (PSI): 500
Number of Ports: 4
Port Type: 4-Port 1/4" NPT (Female)
Unloader: 1/4" Compression
Actuation Type: Diaphragm
Manual Switch Action: Auto/ Off
Phase: Single
Contact Type: DPST
AMPS: 26
HP @ 1 Phase - 120V: 2
HP @ 1 Phase - 230V: 3
Enclosure Nema: 1
Temp. Range (F): -22 to 257
Standards: UL/CSA
Series: MDR11
Weight: 0.850000
