PN: J9774A-1
Technical Specifications:
Differentiator:

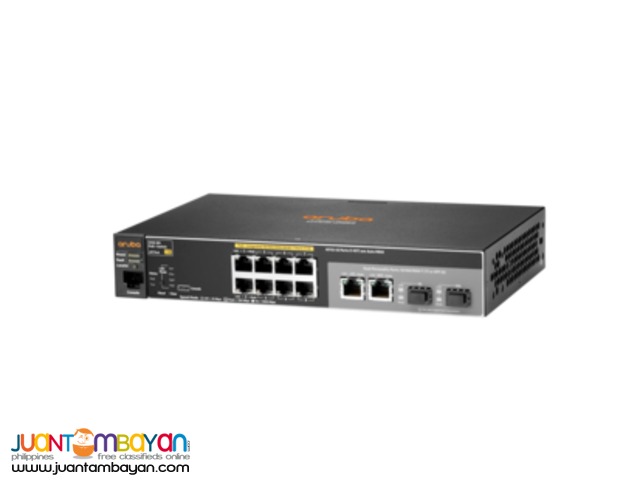

The Aruba 2530-8G-PoE+ Switch is a fully managed layer 2 switch with 8 10/100/1000 PoE+ ports, and 2 dual personality ports.
Ports:
(8) RJ-45 autosensing 10/100/1000 PoE+ ports
(2) dual-personality ports - each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T
IEEE 802.3u Type 100Base-Tx
IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers)
Memory and processor:
ARM9E @ 800 MHz
128 MB flash
Packet buffer size: 1.5 MB dynamically allocated
256 MB DDR3 DIMM
Latency:
100 Mb Latency: < 7.4 µs
1000 Mb Latency: < 2.6 µs\
Throughput:
up to 14.8 Mpps
Switching capacity:
20 Gbps
PoE capability:
67 W
Stacking capabilities:
Virtual
16 switches
Management features:
Aruba AirWave Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
Out-of-band management (serial RS-232C or micro USB)
IEEE 802.3 Ethernet MIB
Repeater MIB
Ethernet interface MIB
