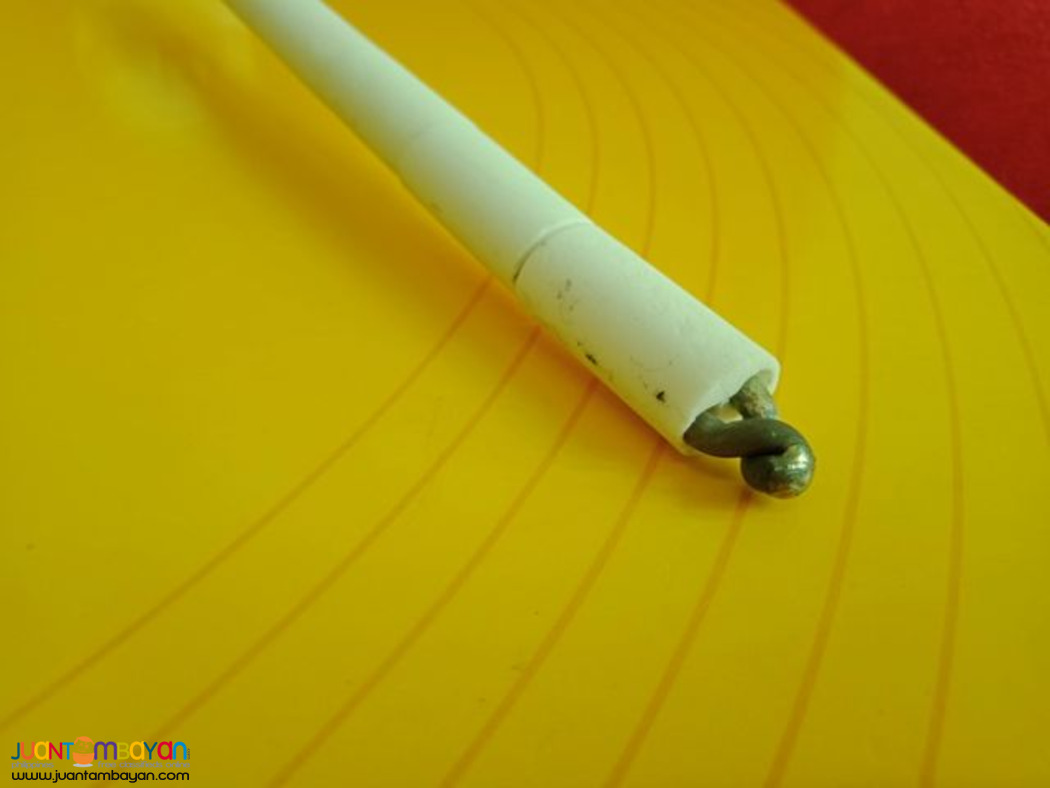

High-Temperature Thermocouple Probe (Type K) - 1300C continuous use.
FEATURES:

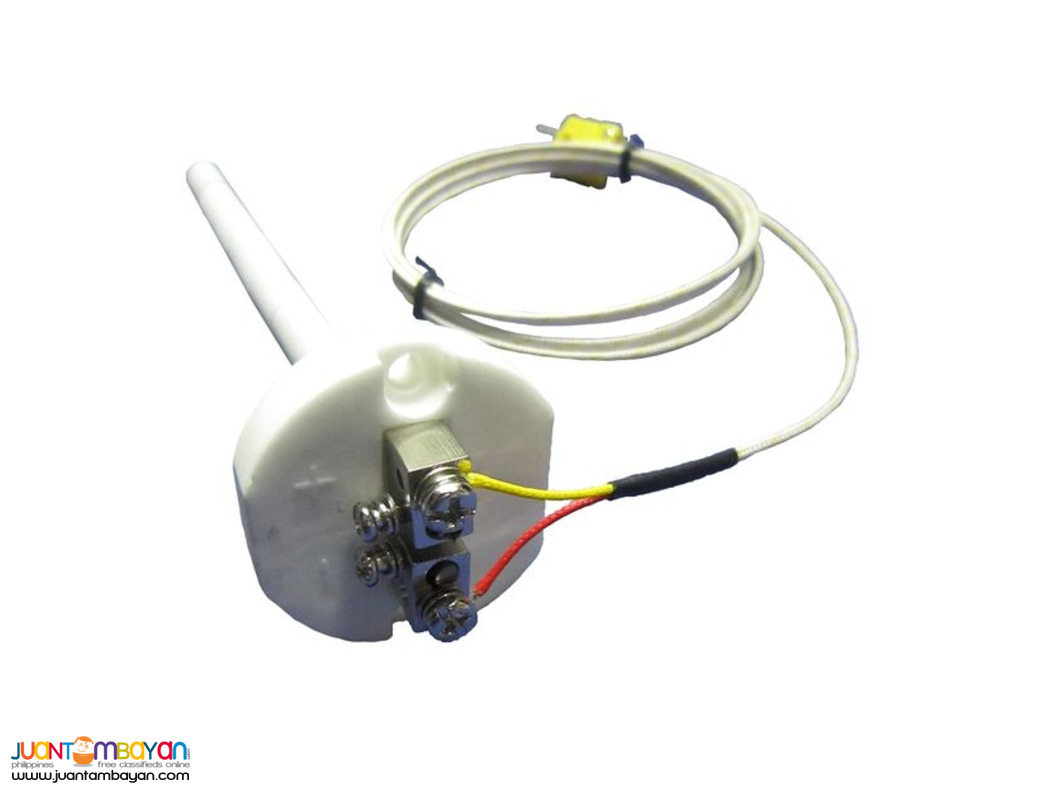

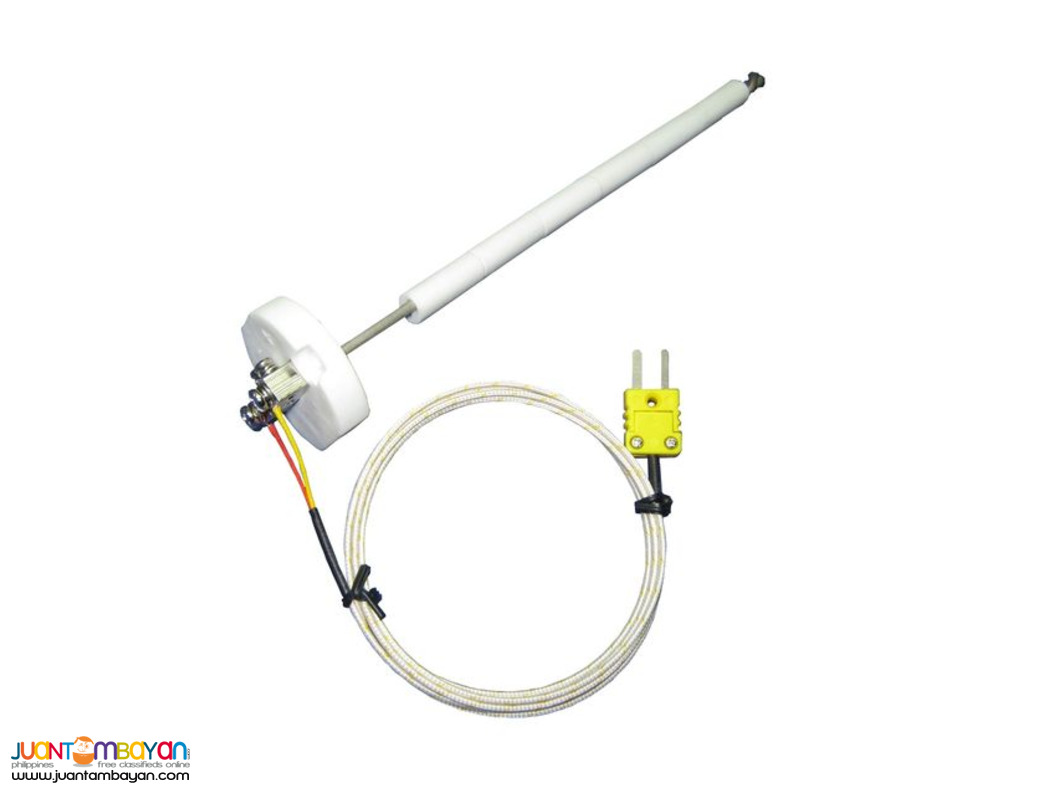

Heavy-duty Type-K Thermocouple probe used in kiln and

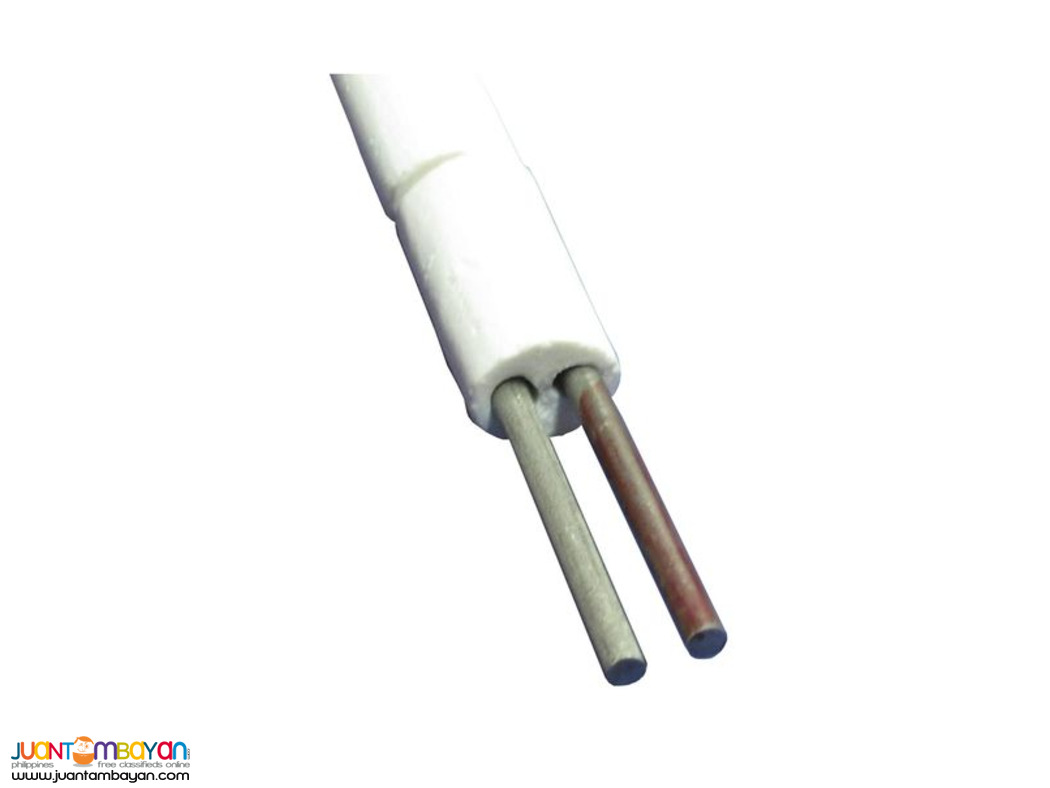

furnace applications. Made from gauge 8 AWG
thermocouple wire and is rated for continuous use at

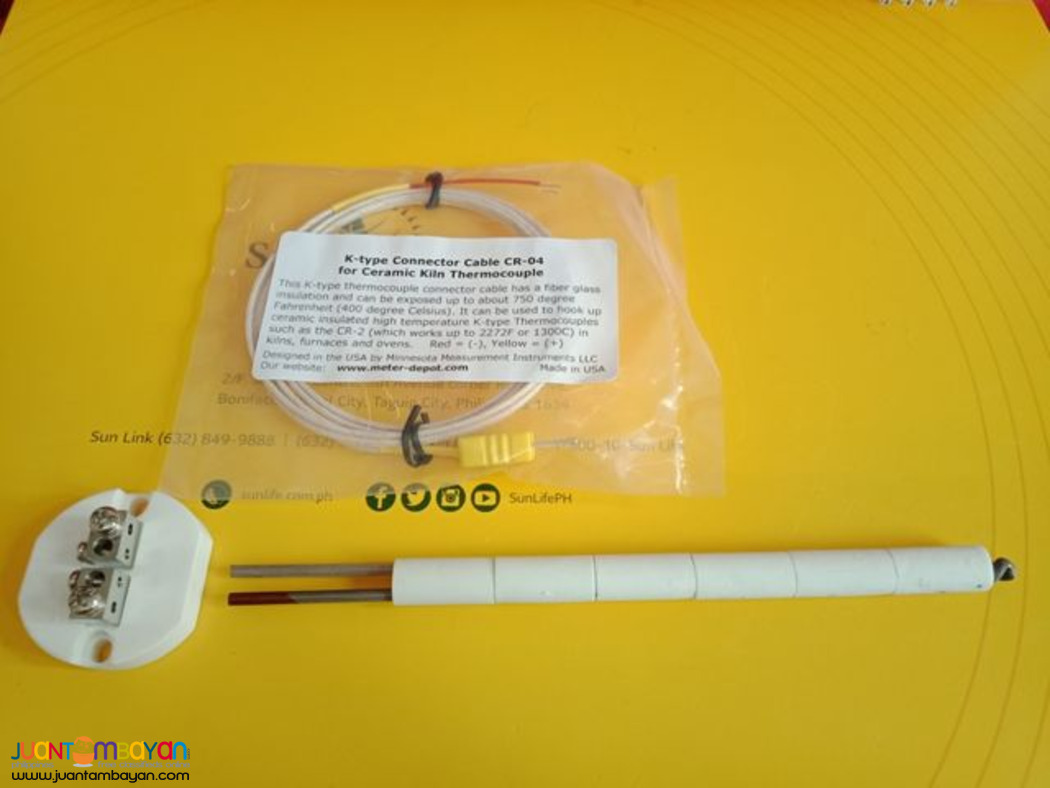

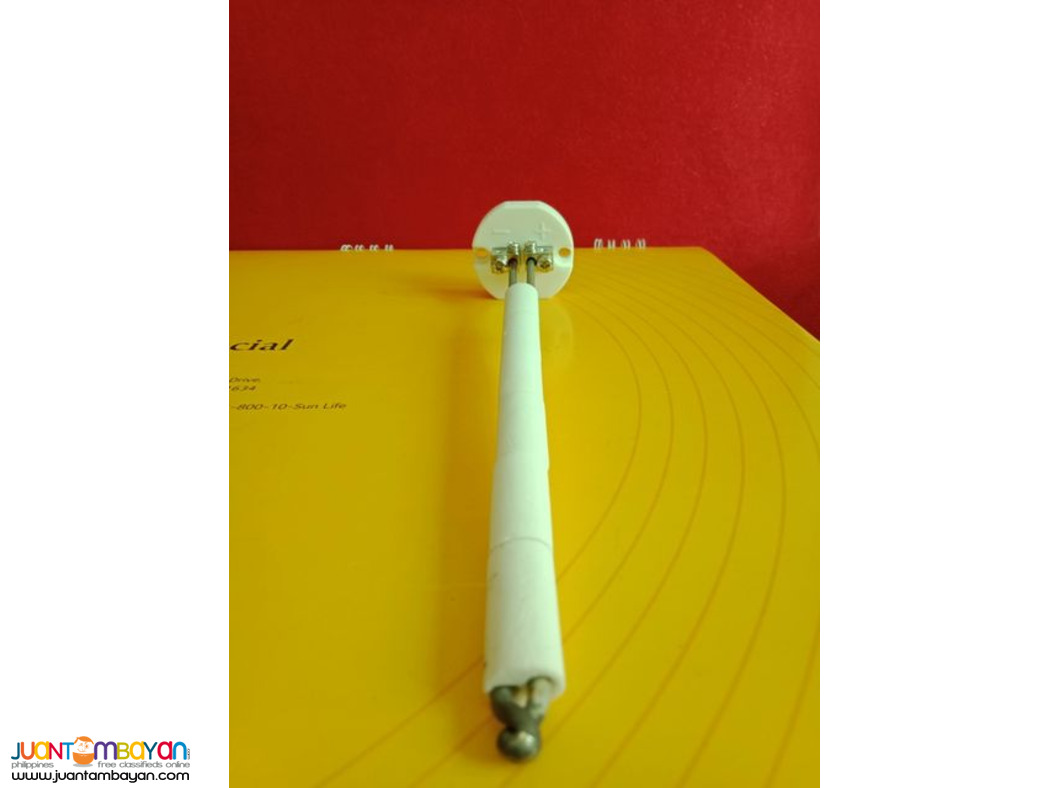

1300 °C. A total length of 8.5 inches with 6 insulation tubes

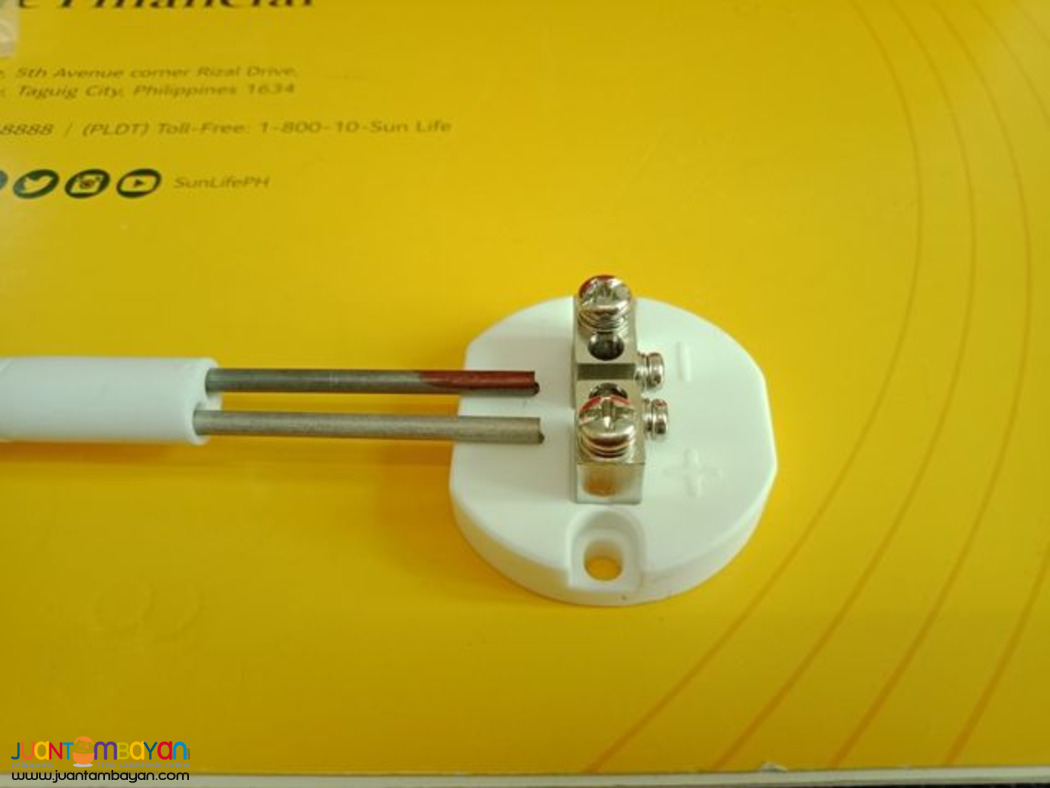

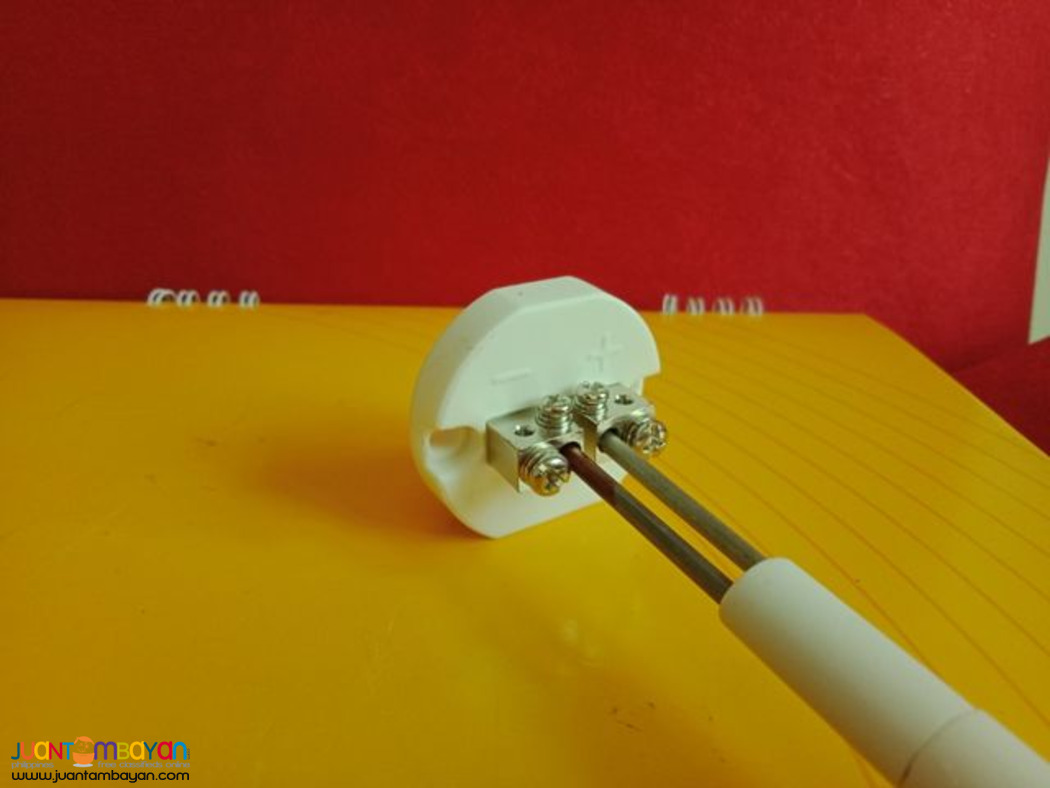

(each about 1 inch long), a connector plate, and
thermocouple wire with a miniature connector.
SPECIFICATIONS:
Thermocouple: Type-K
Accuracy (Class 1): ±1.5°C (-40°C to 375°C), ±0.004´T °C (375°C to 1,000°C)
Measuring Range: -50°C to 1,300°C (-58 to 2,372°F)
Wire Diameter: 8 AWG (3.2mm)
Total Length: 8-Inches (215mm)
Insulated Length: 6.5-Inches (162mm)
