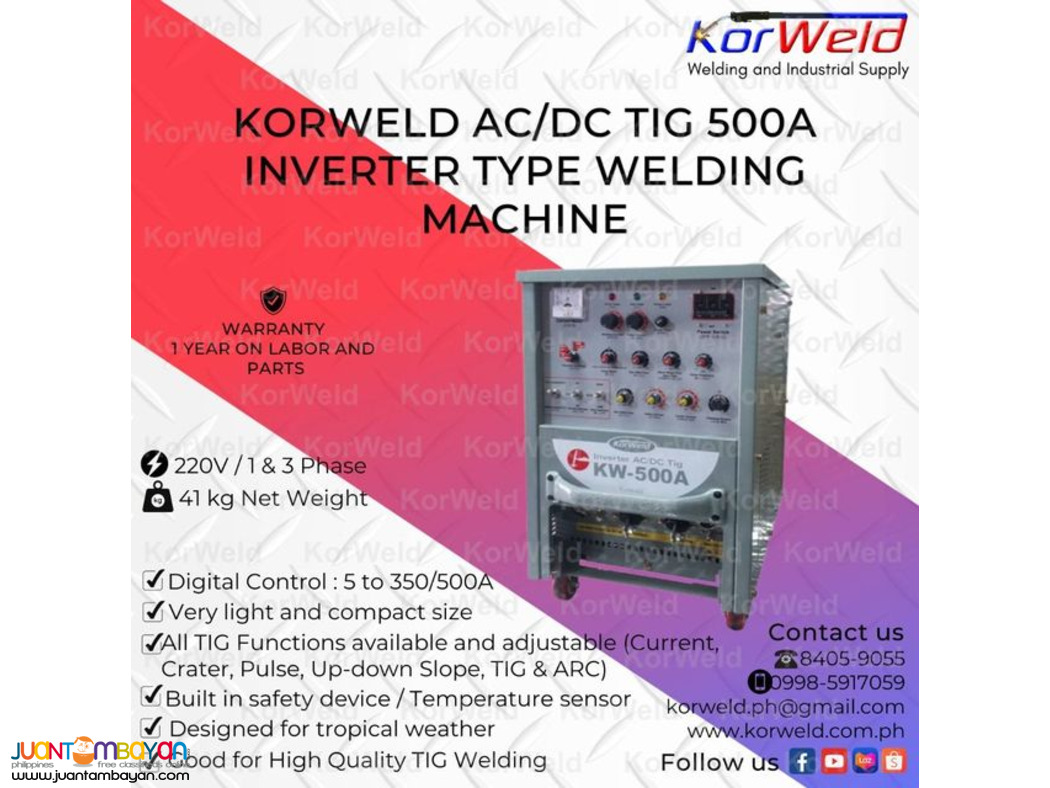

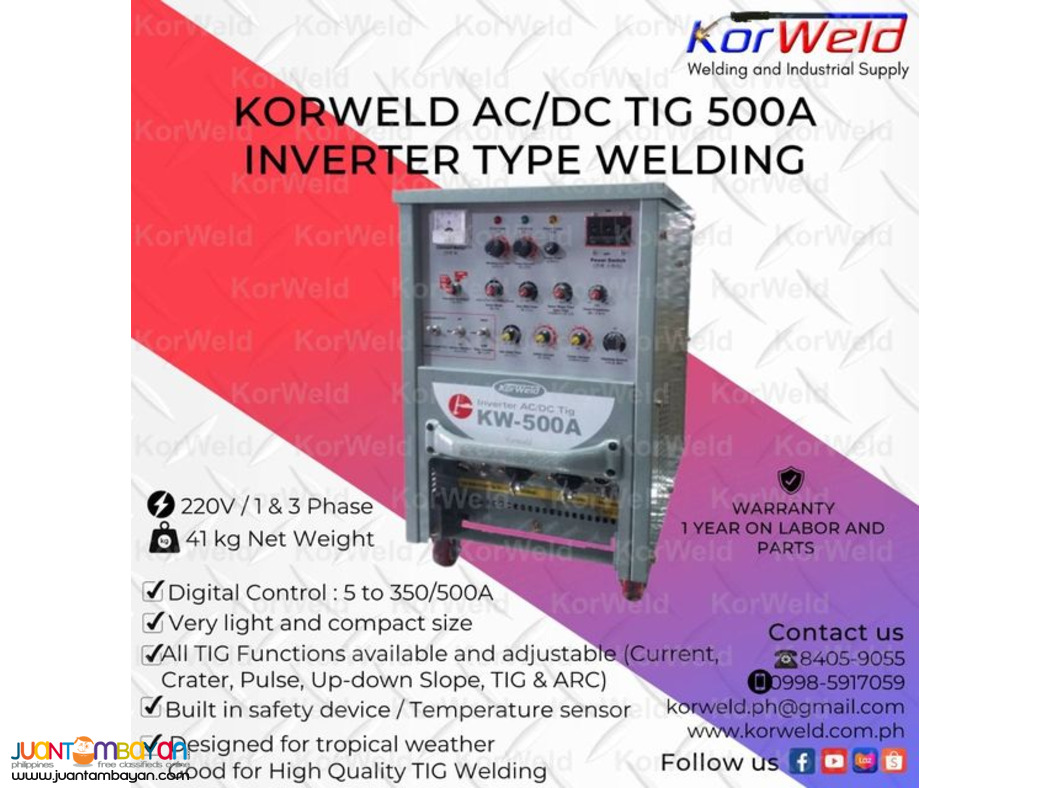

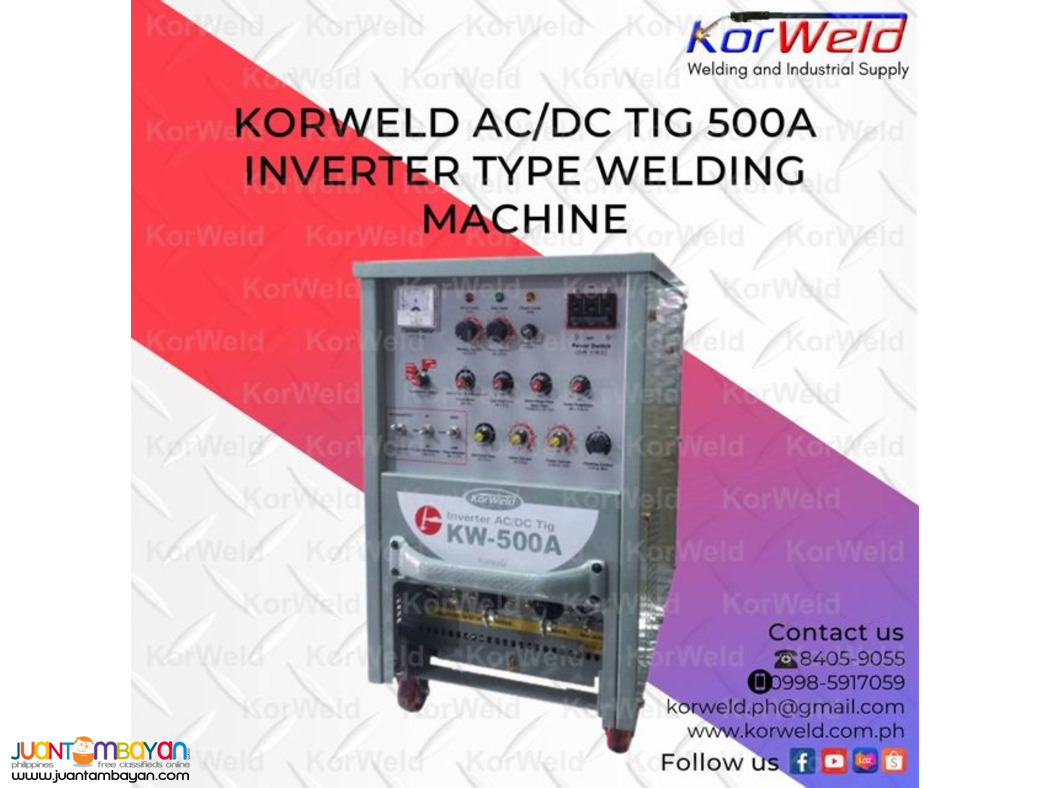

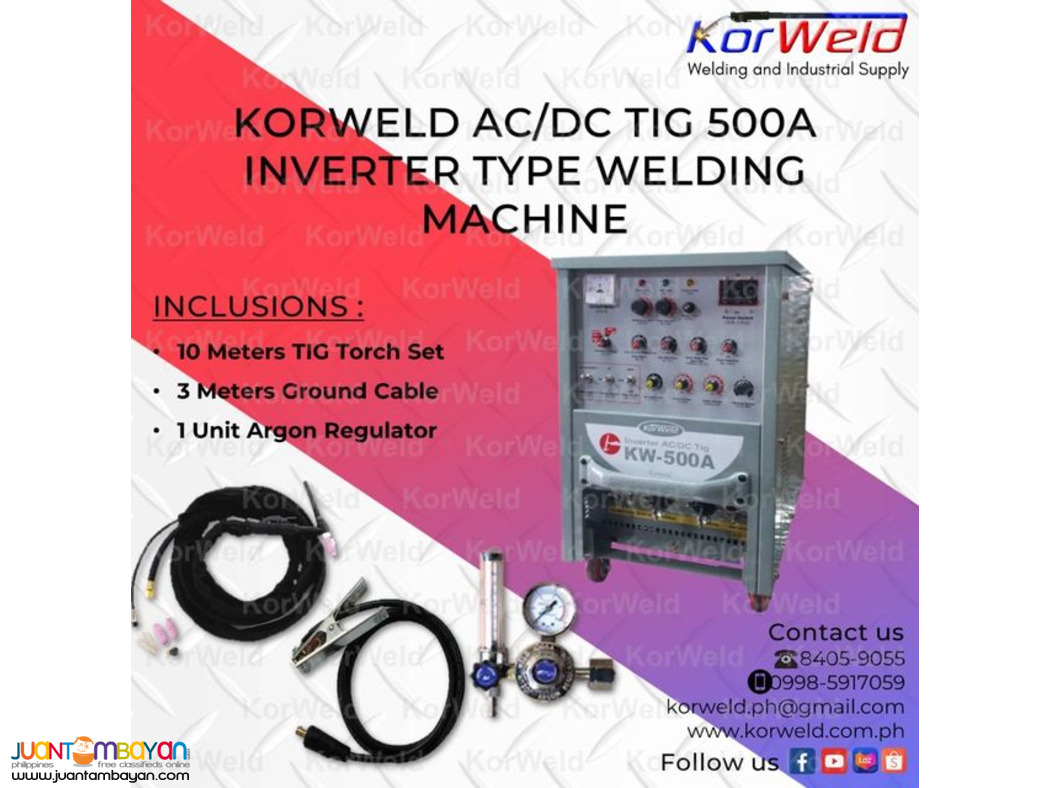

KORWELD AC/ DC TIG 500A INVERTER TYPE WELDING MACHINE

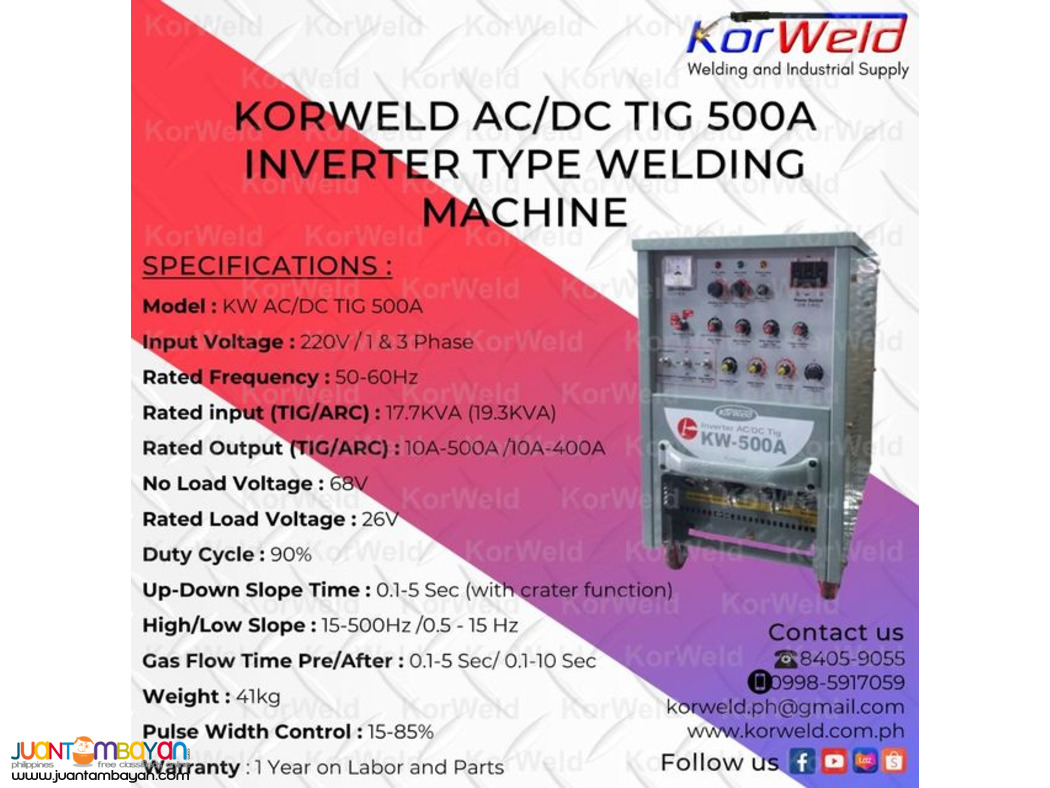

SPECIFICATIONS :
Model : KW TIG AC/DC 500A
Input Voltage : 220V/1&3Phase
Rated Frequency : 50-60Hz
Duty Cycle : 90%
Rated Input : (TIG/ARC) : 17.7 KVA (19.3 KVA)
Rated Output : 10A-500A/10A-400A
No Load Voltage : 68V
Rated Load Voltage : 26V
Up/Down Slope : 0.1-5 Sec (with crater function)
High/Low Slope : 15-500Hz/ 0.5-15 Hz
Gas Flow Time Pre/After : 0.1-5 Sec/ 0.1-10 Sec
Weight : 41kg
Pulse width Control : 15-85%
Warranty : 1 Year on labor and Parts
KORWELD INC. Contact Numbers : Mobile : 0998-591-7059 Landline : 8354-9375 / 8405-9055 Manila Showroom and Service Center: 2387 Sergio Osmena Highway, San Andres, Manila
Laguna Branch : Paciano Rizal, Calamba City, Laguna, Contact No: 049-545-3293 / 0933-812-3120 / 0995-081-3739
Baguio Branch : Camp 7, Kennon Road, Baguio City Contact No.: 0917-7700248 / 074-661-1607
