Portable Magnetic Drilling and Tapping Machine MTM-300 Manila

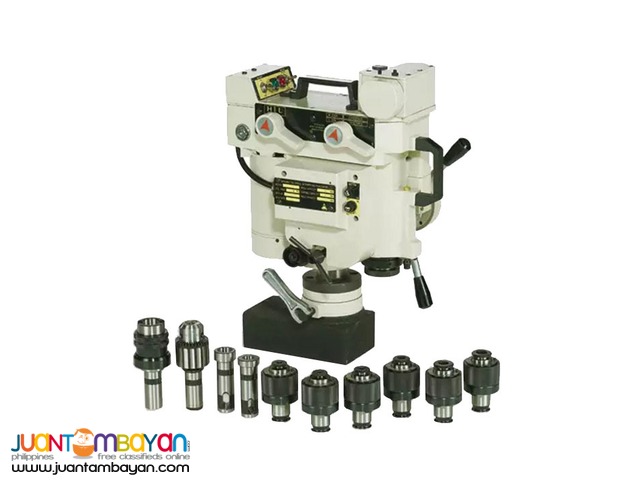

Portable Magnetic Drilling and Tapping Machine MTM-300
Product Features:
  • With circuit protection of breaking for motor, once any wire of three phases power source is broken off, this unit could cut off current to motor to prevent motor from being burn out.
  • The seat of drilling handles is adjustable, users could adjust the angle of drilling handles for convenience of working.
  • With special design of machine body and tube of main spindle, the stroke of such a small machine could reach 100mm.
  • Drill sleeves、tapping adaptors and borer holder are all with rapid adaptors, very convenient for replacement of cutters.
  • Tapping adaptors with torsion control, tap bits are protected from being twisted off.

Model

MTM-300

Drill Capacity

1/8"~1"
3~25mm

Tapping Capacity

3/8"~7/8"
10~22mm

Power

220V
3-Phase

HP

1-1/4"

R.P.M.

705 405
100 58

Freeding Stroke

100mm

Body Stroke

100mm

Turning Degree

180°

Transversal Move

15mm

Magnetic

200x112x78mm

Magnetic Force

1500kgs

Height

500mm

Torsion Fixture Standard Fitting

6

Drill Sleeve Standard Fitting

3

Fittings Weight

8

Machine Weight

41kgs
