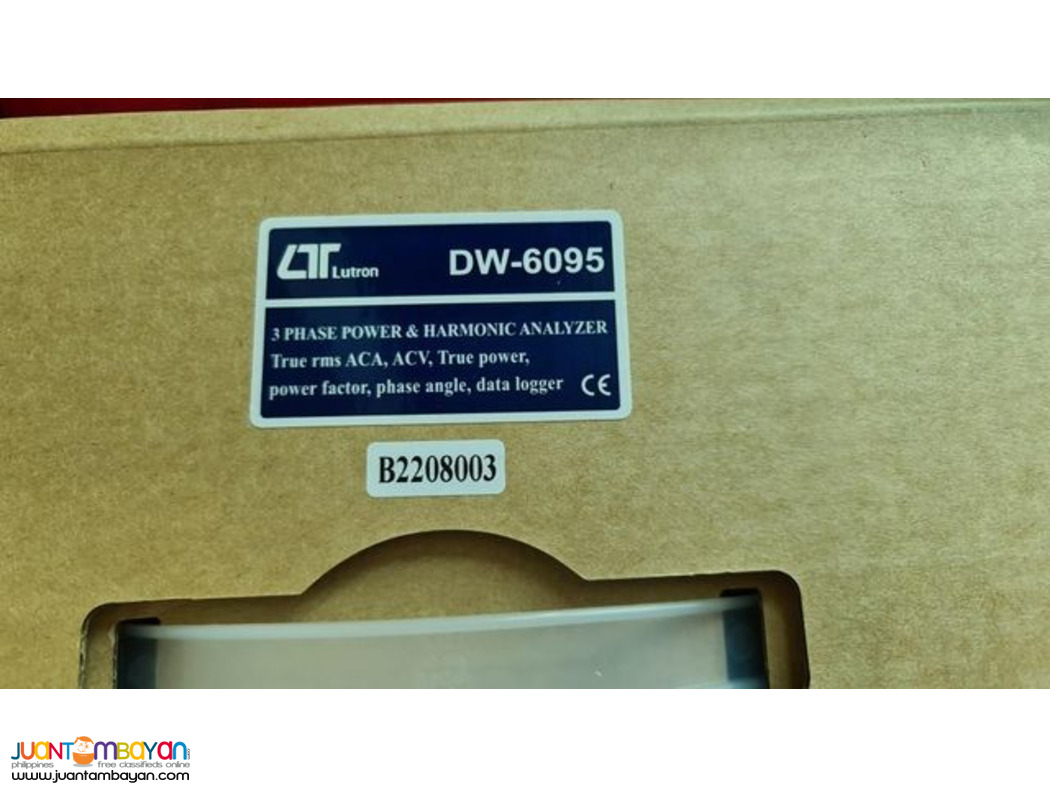

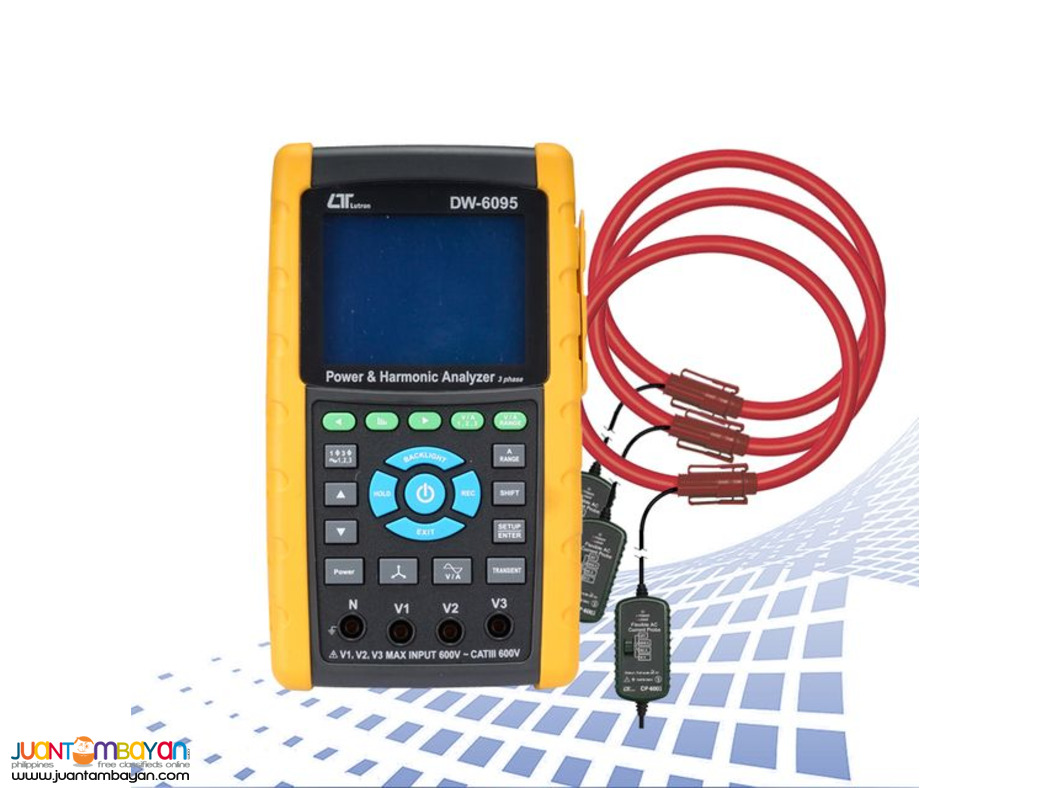

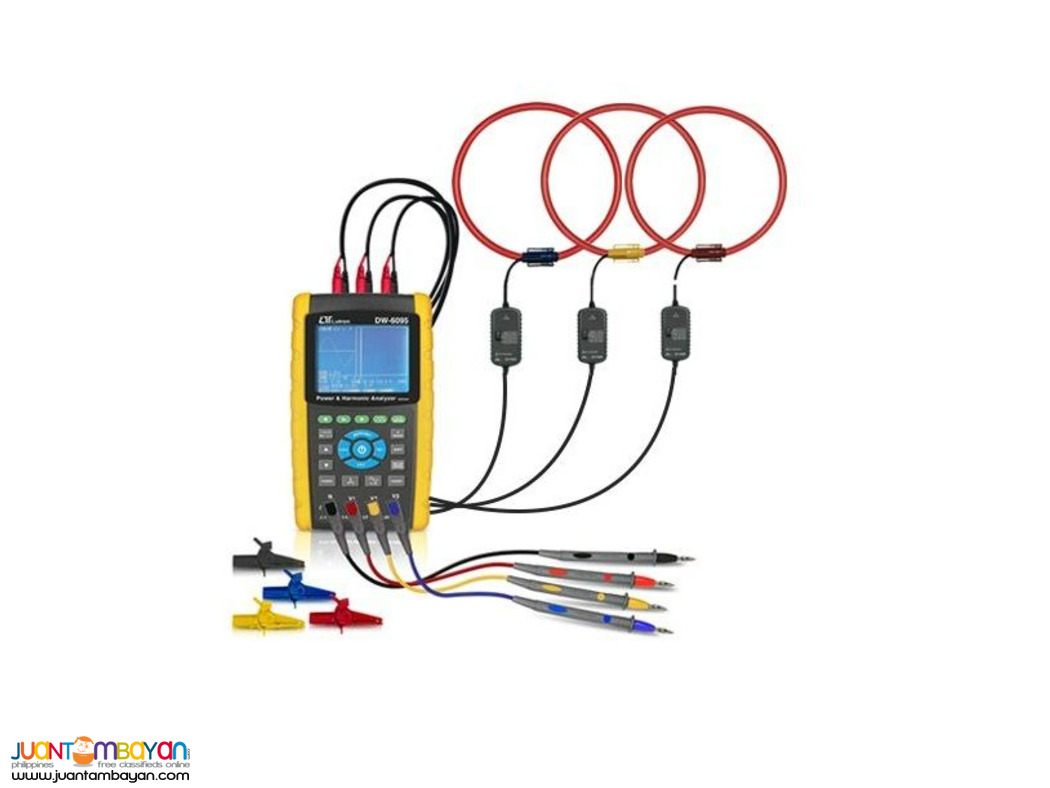

PQA with Harmonics, 6000A, Power Quality Analyzer, 3-Phase Power Analyzer, Lutron, DW-6095
3-Phase Power Analyzer (Datalogger) with Harmonics and 6000A Flexible Current Probe
Model: DW-6095 + CP-6001
Make: Lutron (Taiwan)
Features:
* For 3-Phase/4-Wire, 3-Phase/3-Wire, 1-Phase/2-Wire, 1-Phase/3-Wire
* True RMS Reading (Voltage & Current)
* True Power ( KW, MW, GW ) Measurement.
* Apparent Power ( KVA, MVA, GVA ) Measurement.
* Reactive Power ( KVAR, MVAR, GVAR) Measurement.
* Watt-Hour ( WH, SH, QH, PFH ).
* Power Factor( PF), Phase Angle (Φ)
* Harmonics of AC Voltage (Magnitude, Percentage)
* Harmonics of AC Current (Magnitude, Percentage)
* Total Harmonic Distortion
* Peak Value of ACV or ACA
* Crest Factor of ACV or ACA
* Voltage Range: 10.0 to 600 ACV
* Current Range: 0.2A to 1200 ACA
* Programmable CT ratio (1 to 600) and PT ratio (1 to 1000)
* Safety Standard: IEC 1010, CAT III 600V
* SD Card Data Recorder.
Inclusion:

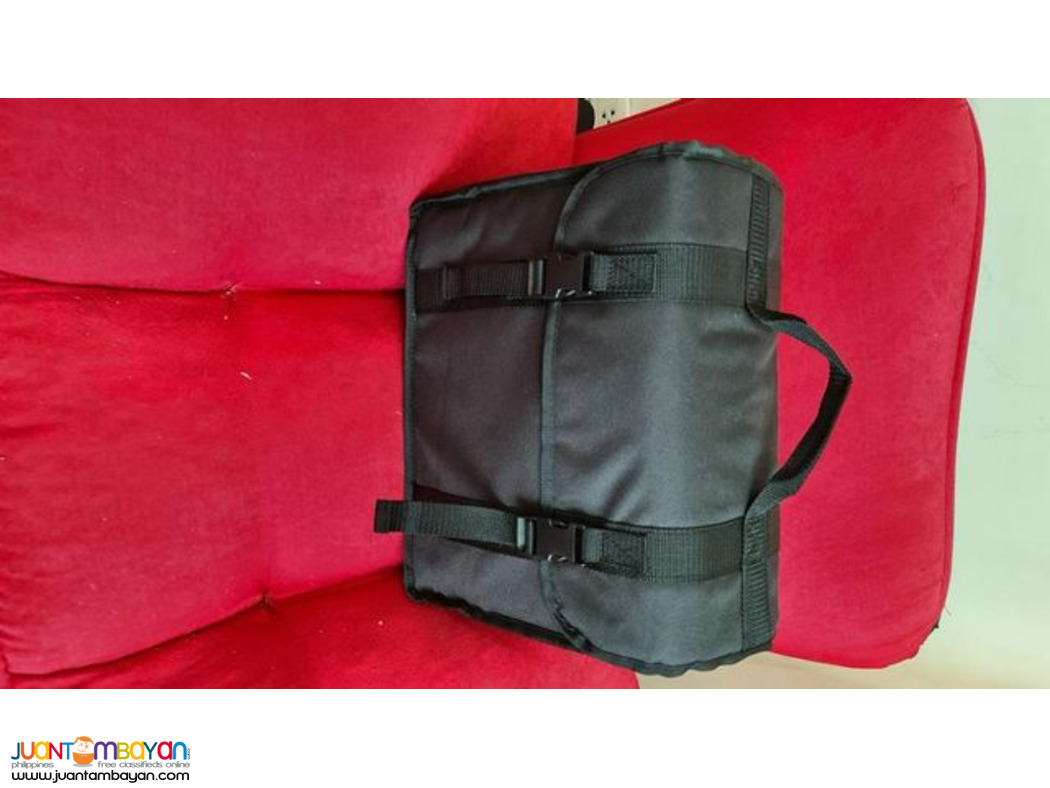

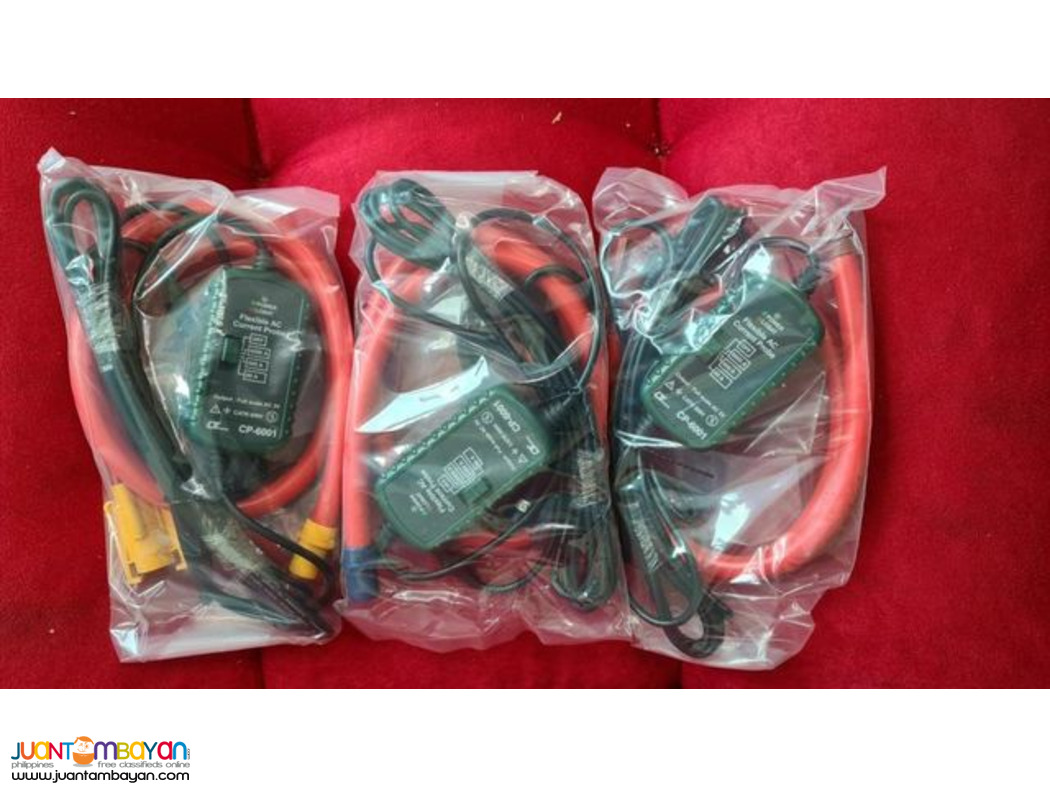

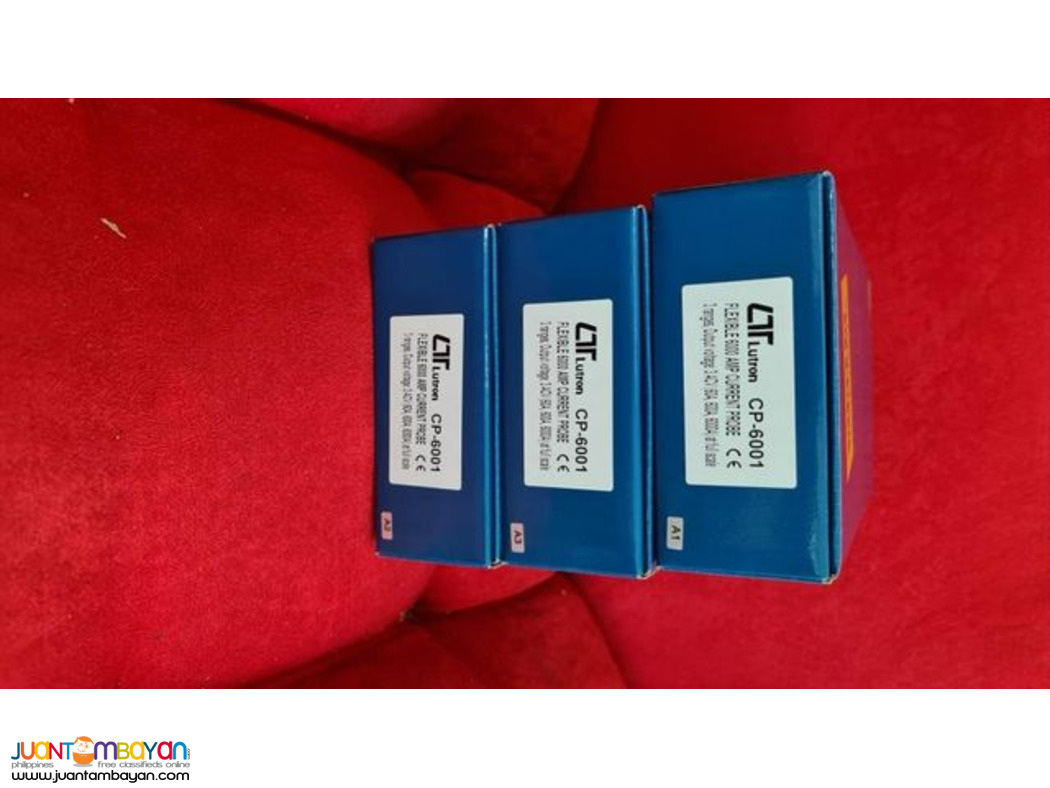

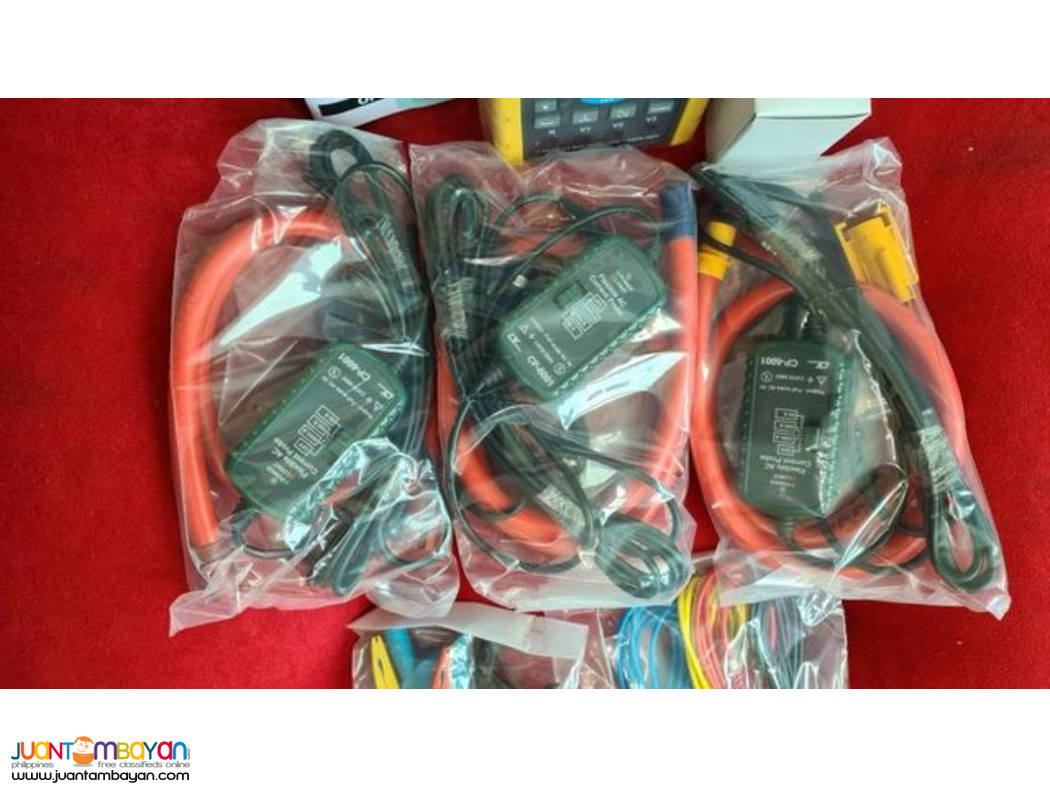

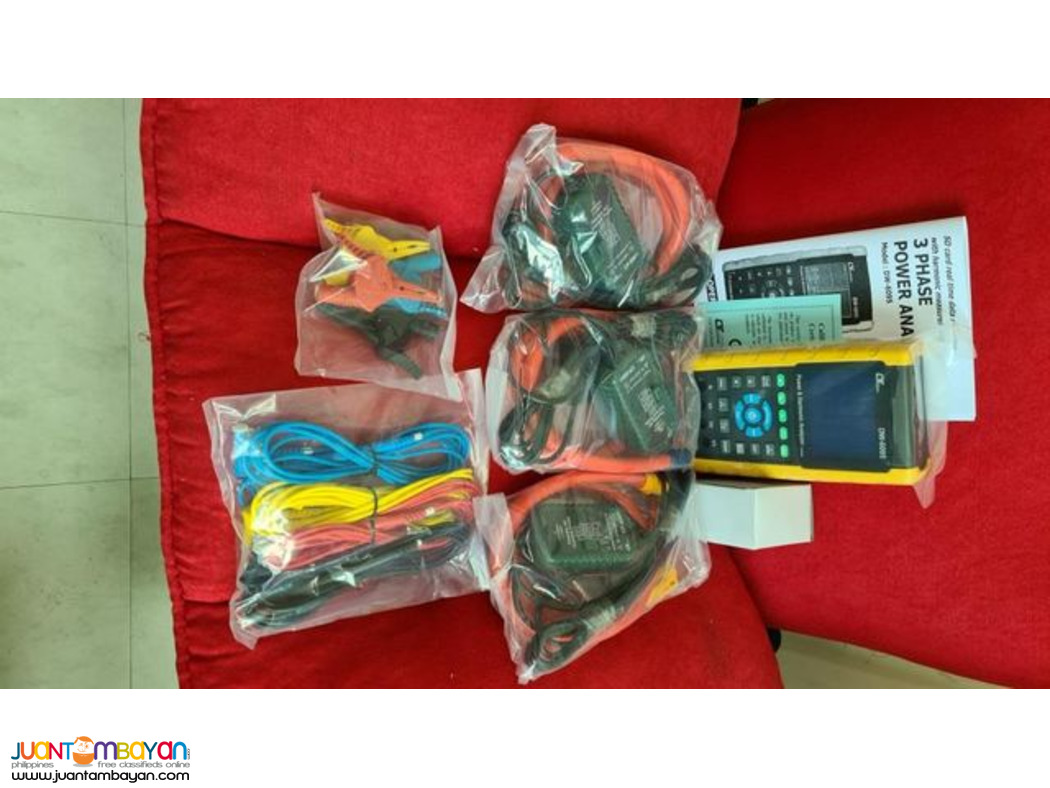

* DW-6095 Power Analyzer with Harmonics, Test Leads (4pcs), Alligator Clips (4pcs), Clamp Probes (1200A, 3pcs), Flexible Current Probe (6000A, 3pcs), 9VDC Adapter, 2GB SD Card, Carrying Case, and Instruction Manual
