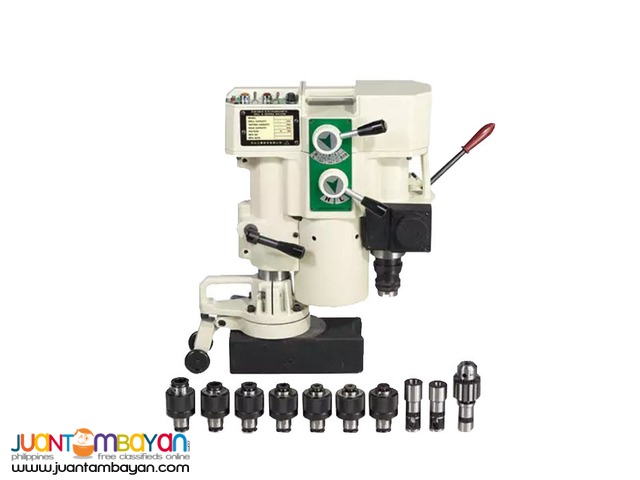

Portable Magnetic Drilling and Tapping Machine MTM-922A

Portable Magnetic Drilling and Tapping Machine MTM-922A











Product Features




  • The rovolving speed is changeable during the machine is being operated. The gears are safe absolutely.

  • The total maximum height is 570m/m. Design of motor and gear box makes the point gravity center become only 280m/m. As the center of gravity is quite low and hard to be fallen, the magentic foundation can attain its function and efficiency.

  • The distributor disc is located on the top of machine which prevent it from being fallen or destroyed.

  • MTM-930A & MTM-922A with six-step speed variable (max. revolving speed: 756min revoling speed:51) depends on the hardness of processed objects and size of hole which makes the operator more comfortable to select the revolving speed.












































































Model



MTM-922A



Drill Capacity



1/4"~7/8"
6Ø ~22Ø



Tapping Capacity



3/8"~7/8"
10 Ø ~22Ø



Power



220V
3-Phase



HP



1-1/2



R.P.M.



756 456
303 186
127 51



Max Depth



100



Body Stroke



150



Transvers al Move



20



Turning Degree



330°



Electro Magretic



126x240



Electro Magretic Force



2000kgs



Height



570



Torsion Fixture Standard Fitting



5



Drill Sleeve Standard Fitting



2



Fittings Weight



5



Machine Weight



60
















































































































Model



MTM-922A



MTM-930A



MTM-940



Drill Capacity



1/4"~7/8"
6Ø ~22Ø



1/4"~1-1/4"
6Ø ~32Ø



5/8"~1-1/2"
16Ø ~38Ø



Tapping Capacity



3/8"~7/8"
10 Ø ~22Ø



3/8"~1-1/8"
10 Ø ~30Ø



5/8"~1-1/2"
16 Ø ~38Ø



Power



220V
3-Phase



220V
3-Phase



220V
3-Phase



HP



1-1/2



2



2-1/2



R.P.M.



756 456
303 186
127 51



756 456
303 186
127 51



686 404
268 165
165 97
65 38



Max Depth



100



100



130



Body Stroke



150



150



200



Transvers al Move



20



20



20



Turning Degree



330°



330°



330°



Electro Magretic



126x240



135x280



155x280



Electro Magretic Force



2000kgs



2500kgs



3000kgs



Height



570



580



730



Torsion Fixture Standard Fitting



5



7



8



Drill Sleeve Standard Fitting



2



3



3



Fittings Weight



5



7



16



Machine Weight



60



70



100
