Portable Magnetic Drilling and Tapping Machine MTM-930A Manila

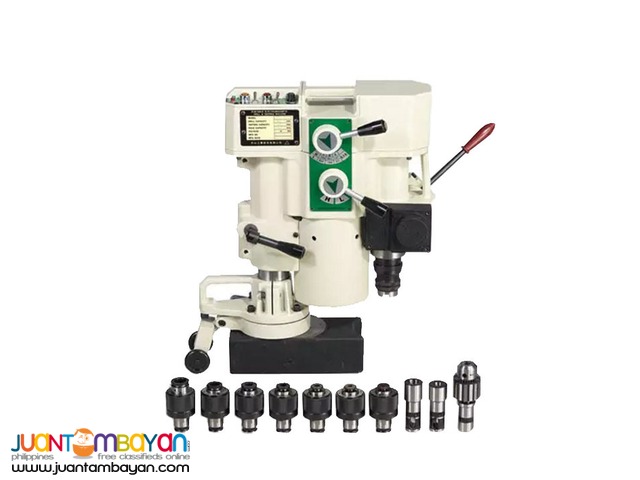

Portable Magnetic Drilling and Tapping Machine MTM-930A











Product Features




  • The rovolving speed is changeable during the machine is being operated. The gears are safe absolutely.

  • The total maximum height is 570m/m. Design of motor and gear box makes the point gravity center become only 280m/m. As the center of gravity is quite low and hard to be fallen, the magentic foundation can attain its function and efficiency.

  • The distributor disc is located on the top of machine which prevent it from being fallen or destroyed.

  • MTM-930A & MTM-922A with six-step speed variable (max. revolving speed: 756min revoling speed:51) depends on the hardness of processed objects and size of hole which makes the operator more comfortable to select the revolving speed.














































































Model



MTM-930A



Drill Capacity



1/4"~1-1/4"
6Ø ~32Ø



Tapping Capacity



3/8"~1-1/8"
10 Ø ~30Ø



Power



220V
3-Phase



HP



2



R.P.M.



756 456
303 186
127 51



Max Depth



100



Body Stroke



150



Transvers al Move



20



Turning Degree



330°



Electro Magretic



135x280



Electro Magretic Force



2500kgs



Height



580



Torsion Fixture Standard Fitting



7



Drill Sleeve Standard Fitting



3



Fittings Weight



7



Machine Weight



70
