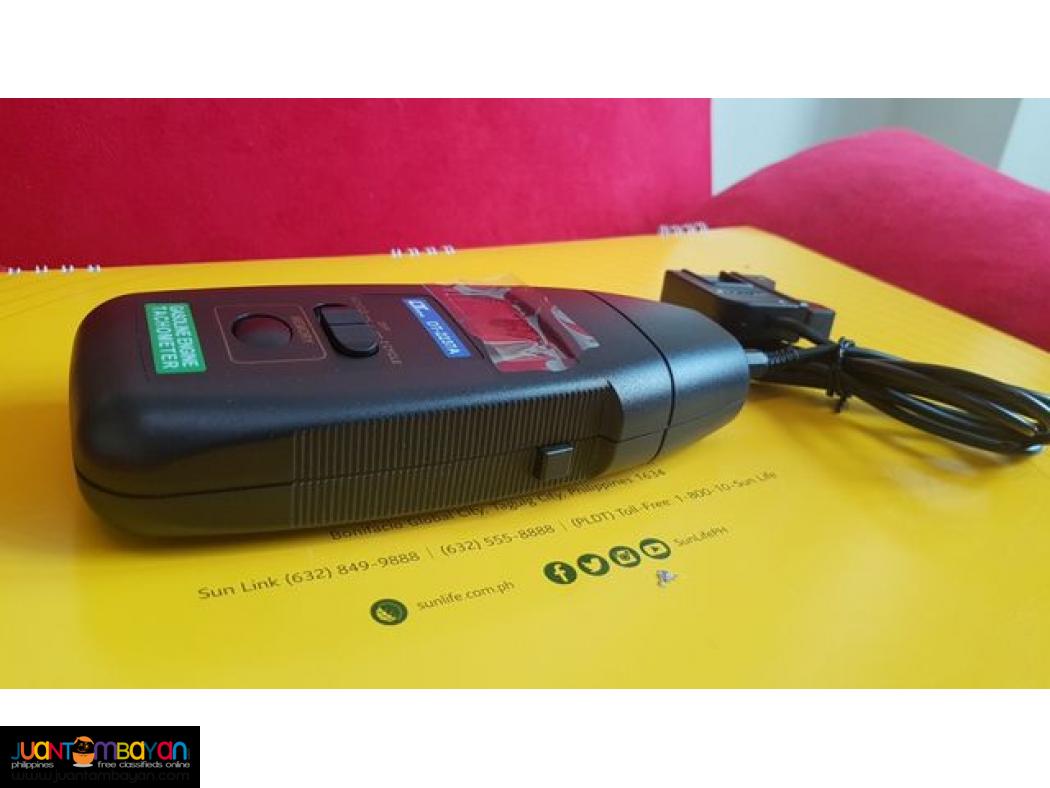

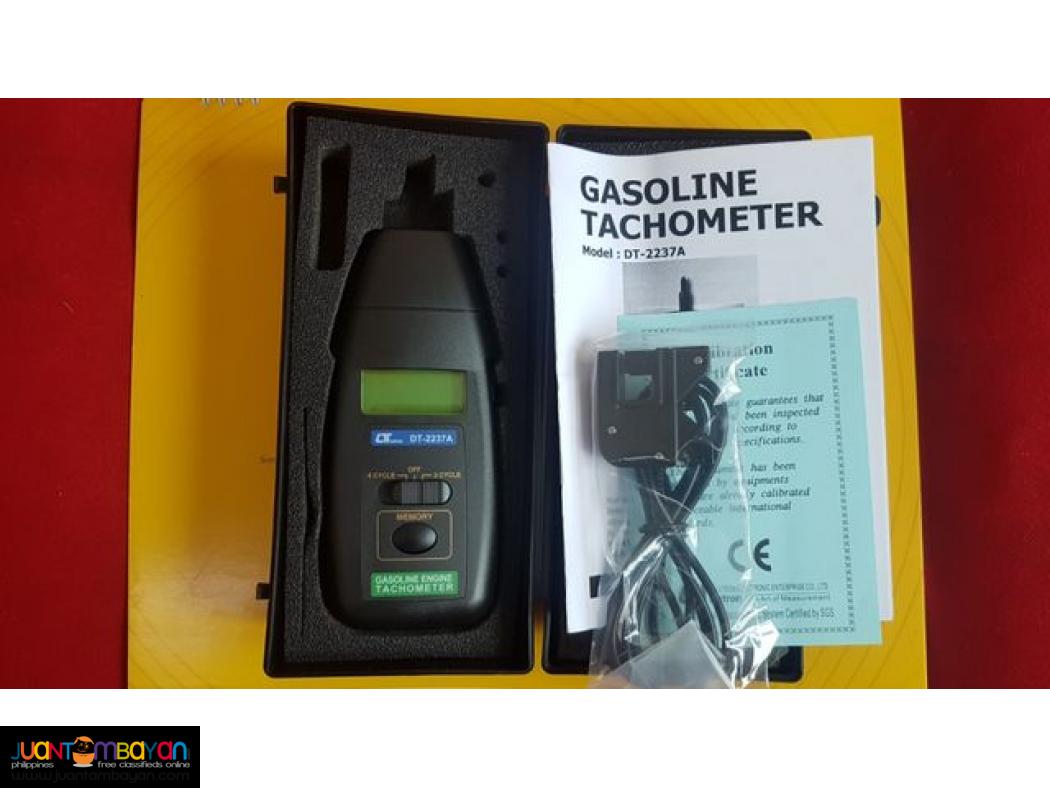

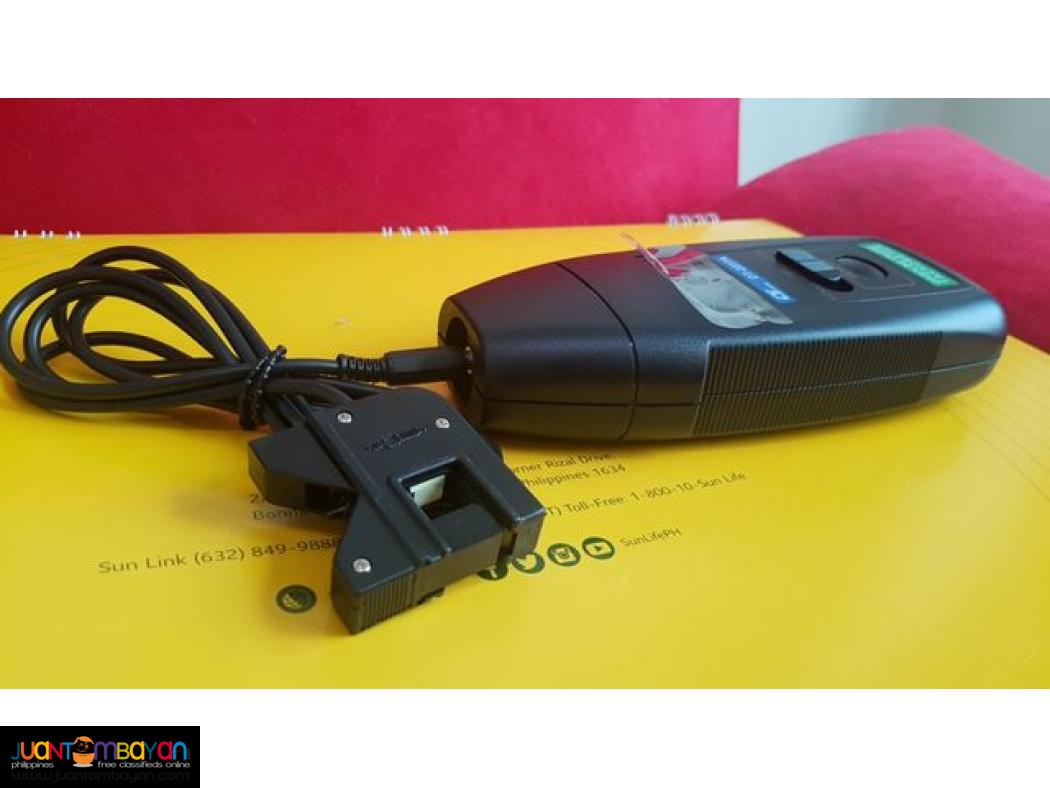

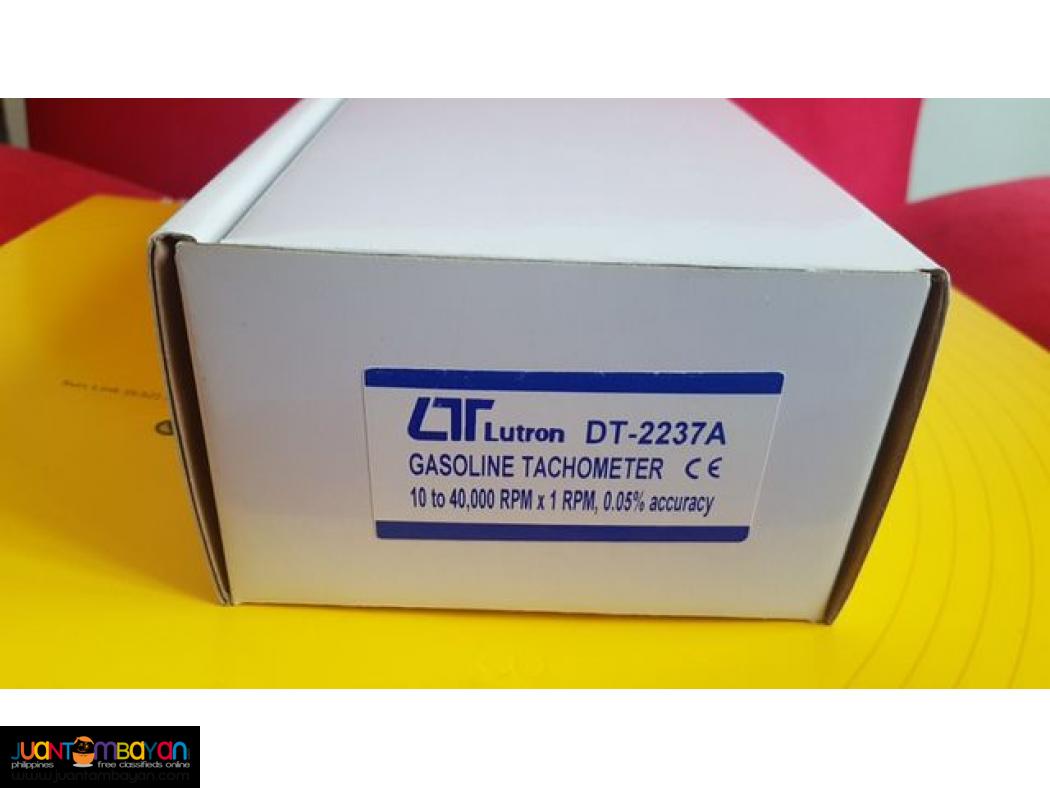

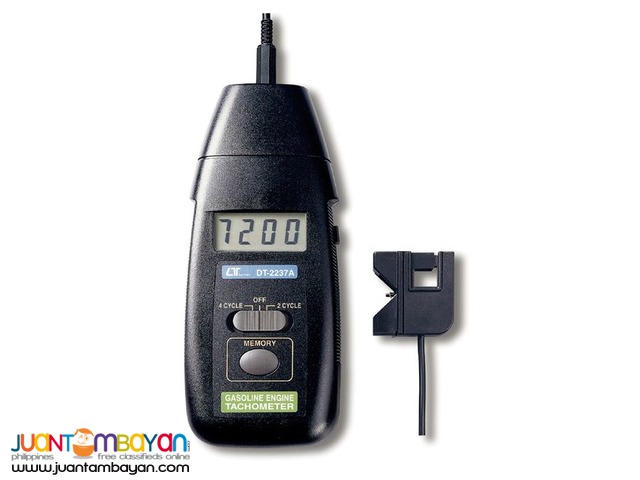

Gasoline Engine Tachometer
Model: DT-2237A
Make: Lutron (Taiwan)
SPECIFICATIONS:
Measured Engine: 2 cycle or 4 cycle - No matter what cylinder is
Range: 10 to 50,000 RPM
Accuracy: 0.05%
Sampling Time: 1 second

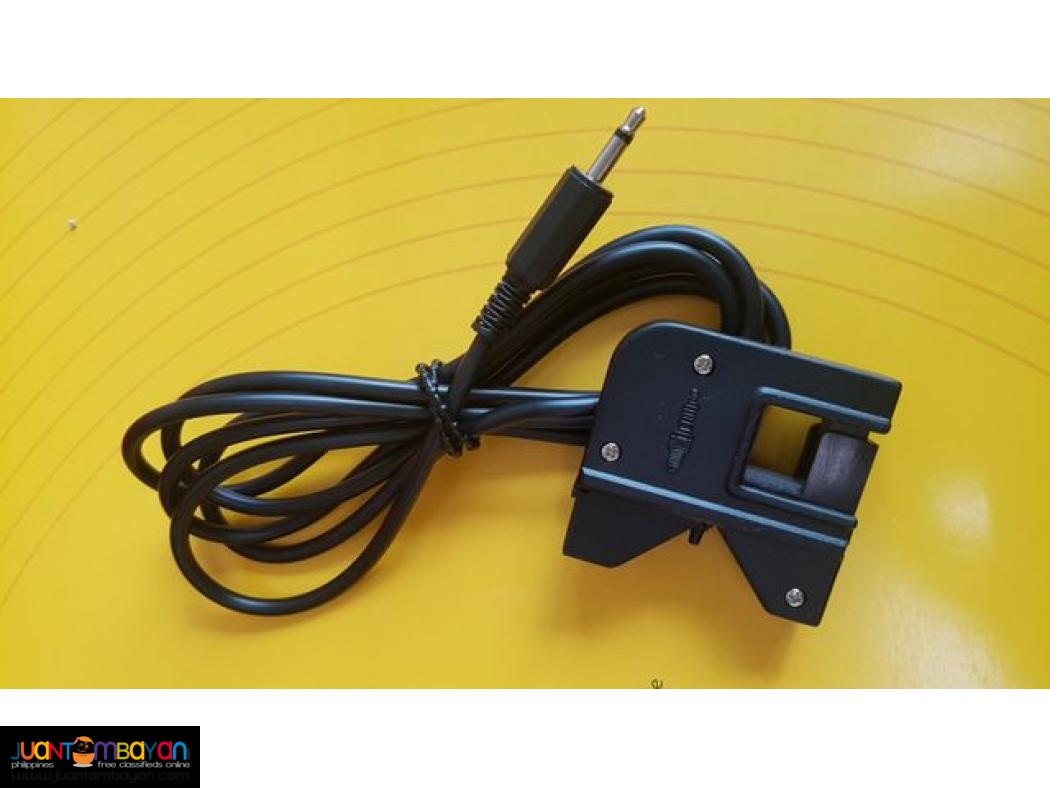

Signal Sensor: RPM inductive pick up sensor.
PROCEDURE

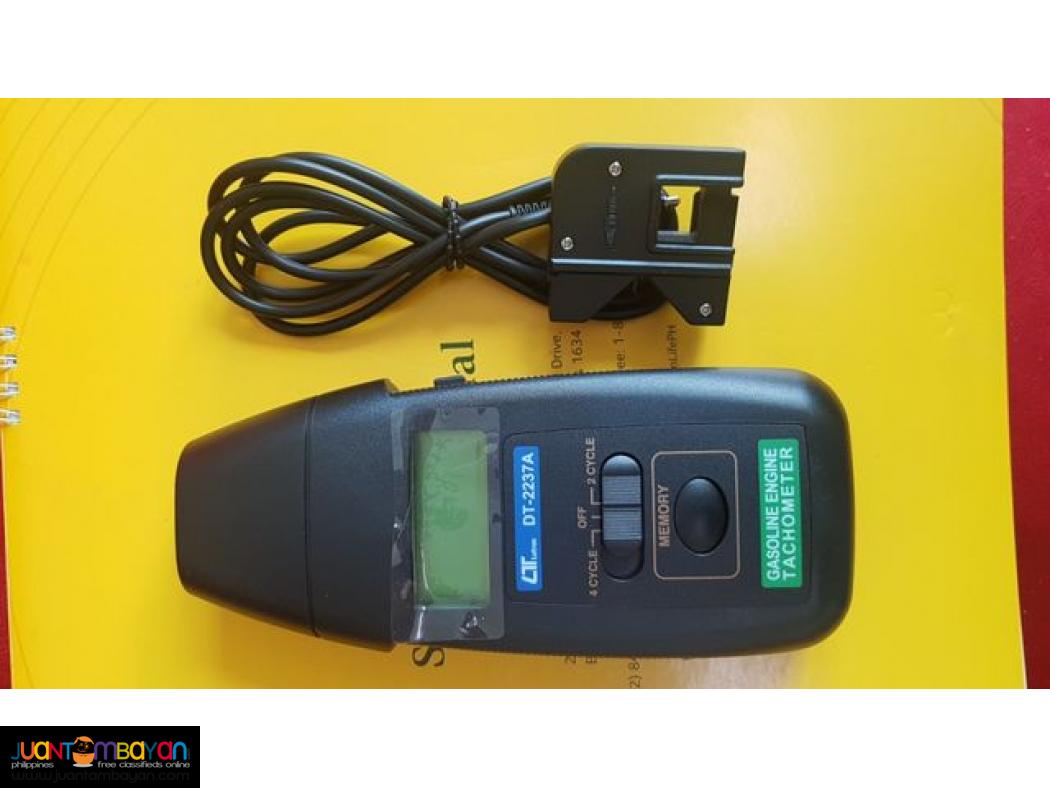

1. Select engine type (4 or 2 CYCLE engine) from CYCLE selector.

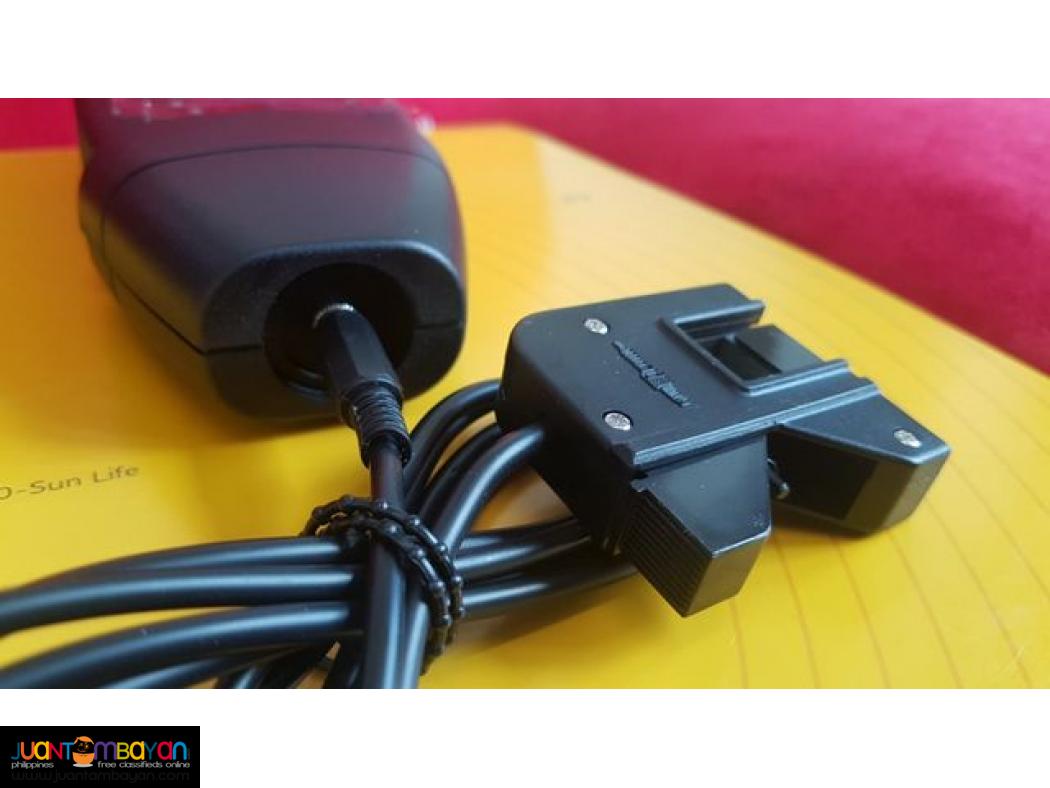

2. Insert the PLUG into the SOCKET.
3. Connect the RPM INDUCTIVE PICK UP SENSOR to the HIGH TENSION WIRE of No. 1 SPARK PLUG ( or No. 2, No. 3... SPARK PLUG).
4. Push the MEASURING BUTTON, verify that the "Monitor Indicator" lights when the signal input. Then the display will show RPM reading and update every second.
