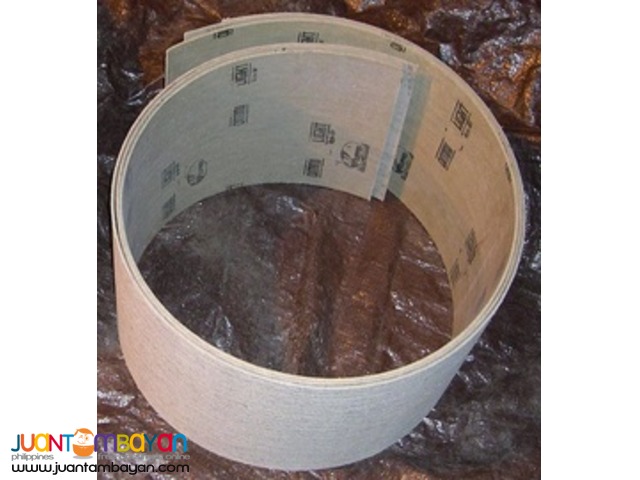

JM Clipper Compressed Gasket Sheets

JM Clipper Compressed Gasket Sheets
JM CLIPPER (USA) gaskets come in three styles described below which are equivalent to Garlock, Chesterton, James Walker, etc.



Gasket Style 978-C



Description: this gasket is a dense, aramid/inorganic fiber reinforced, compressed, NBR sheet with a special, high temperature, anti-stick parting agent applied to both sides. It's high strength and excellent resistance to hot creep and broad chemical resistance make it an ideal high performance gasket material.



Application: gasket style 978-C can be used for gasketing in piping, machinery, or equipment containing steam, petroleum based liquids, gases and mild acids or alkalines. It may also be used in most solvents excluding MEK and high aromatics. Gasket style 978-C also has excellent sealability in ethylene glycol coolants and silicone fluids.



Gasket Style 1078



Description: gasket style 1078 WHITERILE is an off-white, compressed, NBR/synthetic fiber sheet that is recommended for service where color contamination is a concern. It is also a good choice for cutting intricate gaskets requiring especially clean cuts. With a high temperature parting agent as a standard surface treatment, 1078 is an excellent choice for general service gaskets.



Application: gasket style 1078 is recommended for use on process piping and equipment and all types of machinery. It can be used in mild acids and alkalis, water, steam, gasses, oils and gasoline, It can be used in most solvents excluding MEK and high aromatics. Gasket style 1078 also has excellent sealability in ethylene glycol coolants and silicone fluids.



Gasket Style NA-60



Gasket NA-60 is a low cost, NBR/aramid fiber, compressed gasket sheet made with all the great features of premium gasket materials without the cost. Only the best raw materials are used, without compromise. Gasket NA-60 is recommended for general service gaskets on all machinery, process piping and equipment. It offers broad chemical resistance, cutability, flexibility and is low in cost.





Over many decades,JM Clipper has developed its manufacturing process and customer service philosophy to provide value-added, high-quality sealing components to the most demanding specifications.



A HERITAGE OF INNOVATIONAs a division of Johns Manville until 1989, JM Clipper has manufactured specialty sealing components since the 1870s. The JM Clipper name began with the highly successful Clipper Oil Seal developed to control oil leaks on the Pan Am Clipper aircraft flying the Pacific in the 1930s.



Advertisements indicate the company was manufacturing "steam packing" as early as 1871 and gasket materials in 1891. During the early 1900s, the company specialized in rope, pump packing, and industrial textiles. By the 1930s, compressed gasket sheet and molded rubber reciprocating seals were added. Firmly established in rubber processing, JM Clipper then developed the Clipper Oil Seal which grew into today's full line of radial oil seals.



THE COMPANY TODAY JM Clipper offers a broad line of radial seals include Clipper Oil Seals, Split Seals, High and Medium Pressure Seals, Clipper SlipTiteT High-Performance Seals, Millennium Metallic Bearing Isolators and ProTechT Labyrinth Seals.



Today, JM Clipper's dedicated sales force and 2,000 independent distributors worldwide service 500 original equipment manufacturers (OEMs) and many thousands of industrial plants. Key markets include heavy equipment, aerospace, marine, oilfield, refining, chemical, mining, power generation, pulp and paper, primary metals, and other heavy industrial markets.



TECHNOLOGY LEADERSHIP JM Clipper meets customer needs with a wide range of new and proven technologies. These include close-tolerance machined PTFE, flexible graphite, unique rubber/fiber composites as well as more traditional rubber, plastic, and textile products. These materials are all utilized at the company's 205,000 square-foot facility in Nacogdoches, Texas, which opened in the mid-1980s.



The Redmond Plastics plant in Marion, New York, molds and machines filled and virgin PTFE, PEEKT, and RytonT on the most modern CNC machines. This facility is equipped to respond to EDI, bar code, quality, and certification requirements.



ISO-9001 CERTIFICATIONIn 1994, Det Norske Veritas Industries of the Netherlands completed its ISO audit and JM Clipper gained ISO-9001 certification for manufacturing, product design, and engineering which adds yet a higher level of quality assurance.
