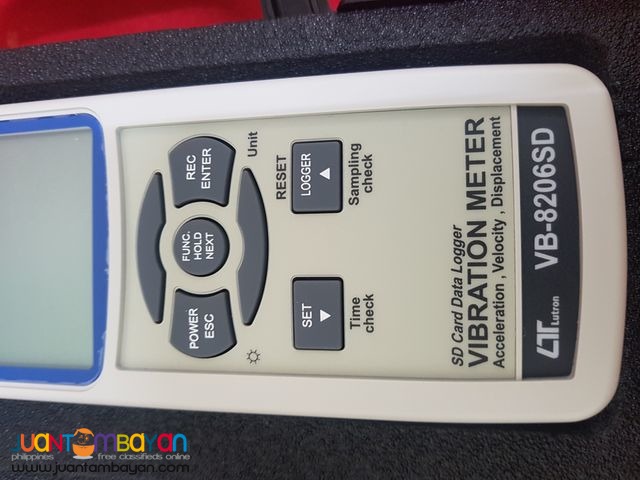

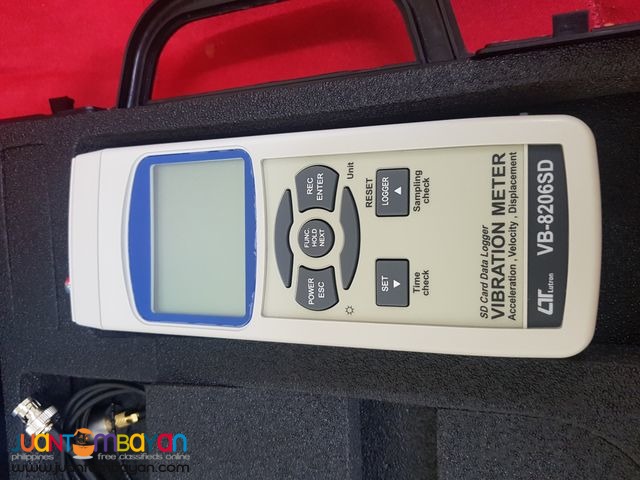

Digital Vibration Meter (Datalogger)
Model: VB-8206SD
Make: Lutron (Taiwan)
Features:

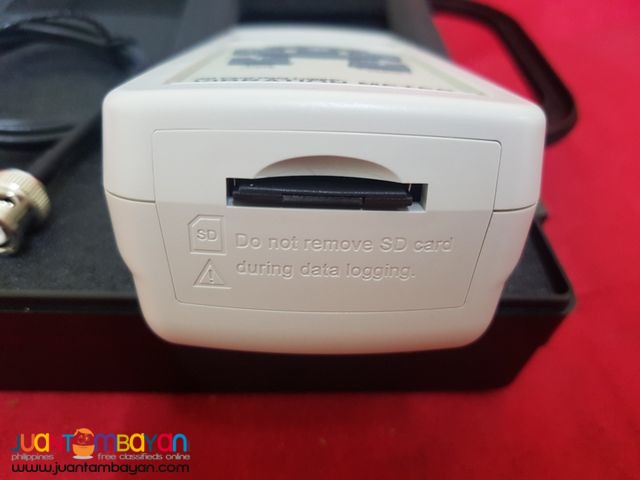

* Real time SD memory card Datalogger, sampling time from 1 to 3600 seconds.
* No extra software needed. Saved data can be open and edit in MSExcel.
Specifications:
* Measures VELOCITY, ACCELERATION and DISPLACEMENT
* Metric & English Unit
* Function: RMS value, Peak value, MAX hold, Max. & Min. value.
* Velocity: 0.5 to 199.9 mm/s (0.05 to 19.99 cm/s) (0.02 to 7.87 inch/s)
* Acceleration: 0.5 to 199.9 m/s2 (2 to 656 ft/s2) (0.05 to 20.39 G)
* Displacemen (p-p): 0.014 to 1.999 mm (0.001 to 0.078 inch)
* Frequency Range: 10 Hz to 1 KHz (Sensitivity frequency range meet ISO 2954)
* Power Supply: DC 9V battery (Alkaline)
Inclusion:

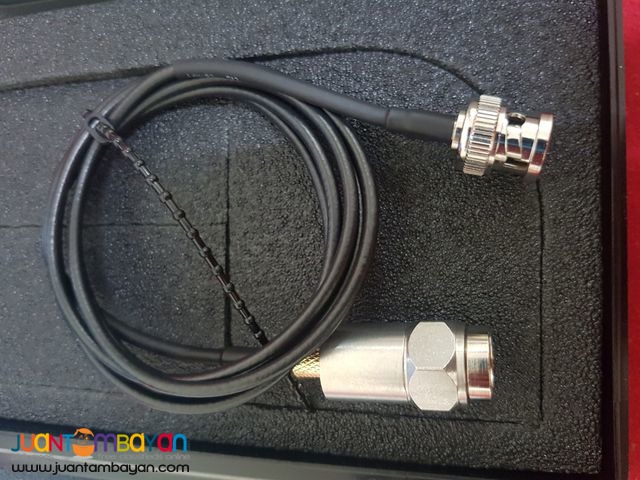

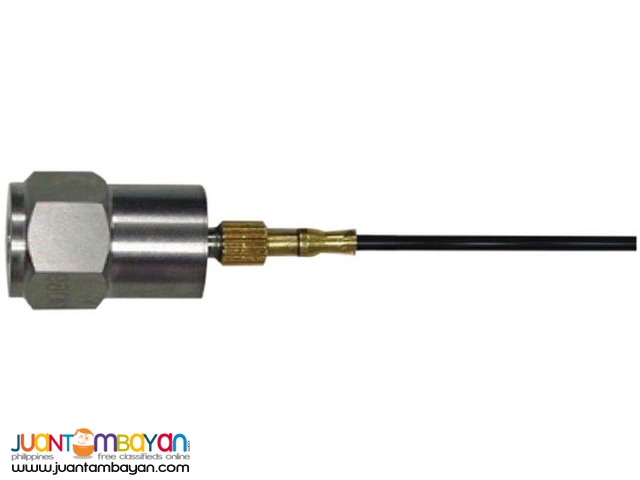

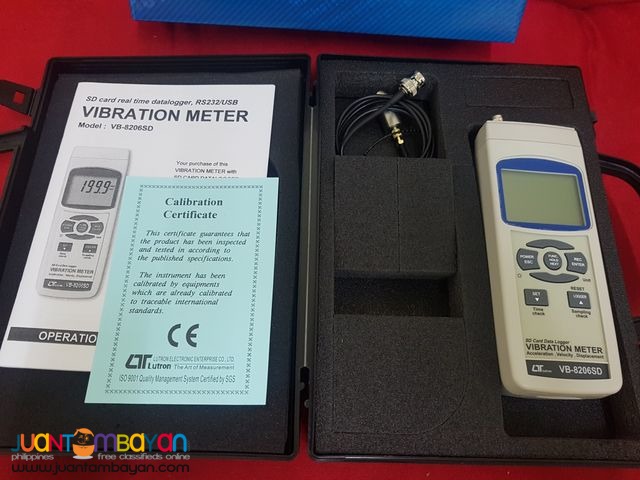

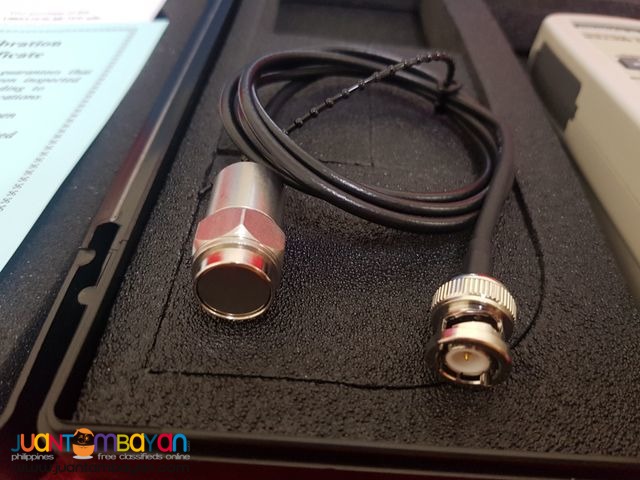

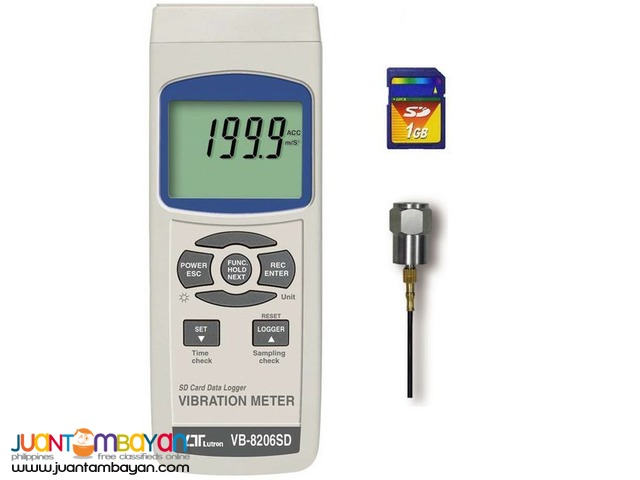

* Main Unit, Vibration Sensor with Magnetic Base, 4GB SD Card, Instruction Manual, Carrying Case and Battery.
