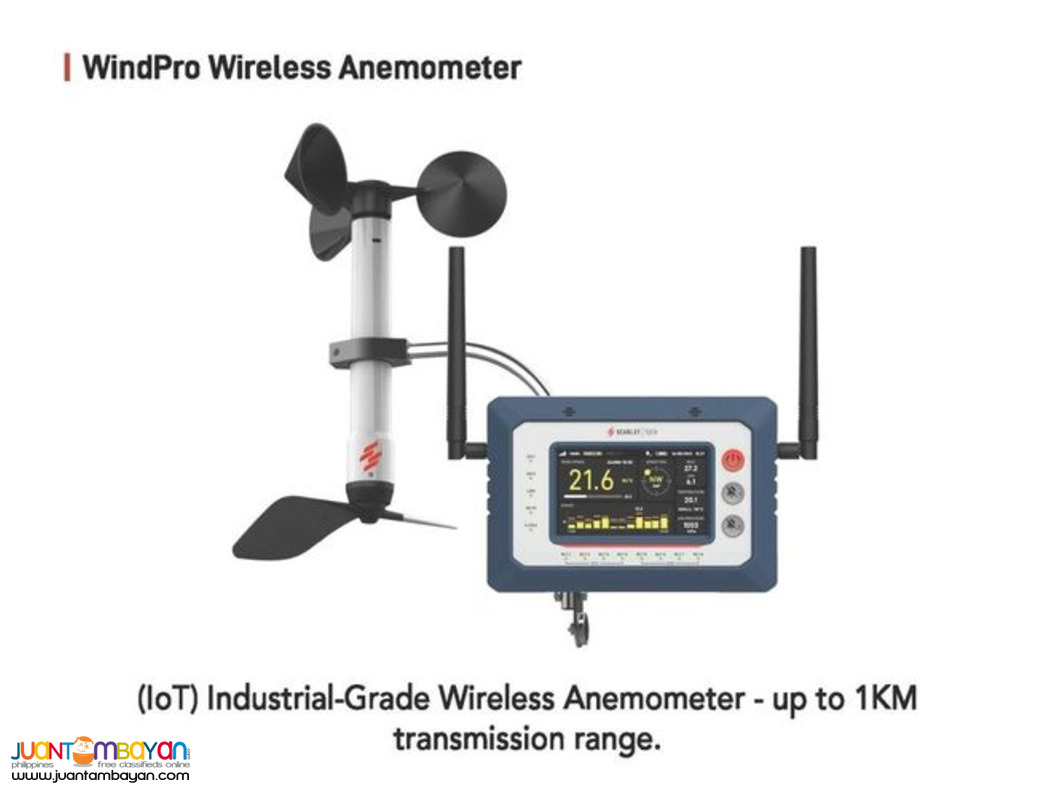

Wind Alarm System with Self-Levelling Magnetic Bracket
Model: WinPro/S (Wind Speed)
Make: Scarlet (Taiwan)
(also available with WIND DIRECTION and CLOUD subscription)
Features:

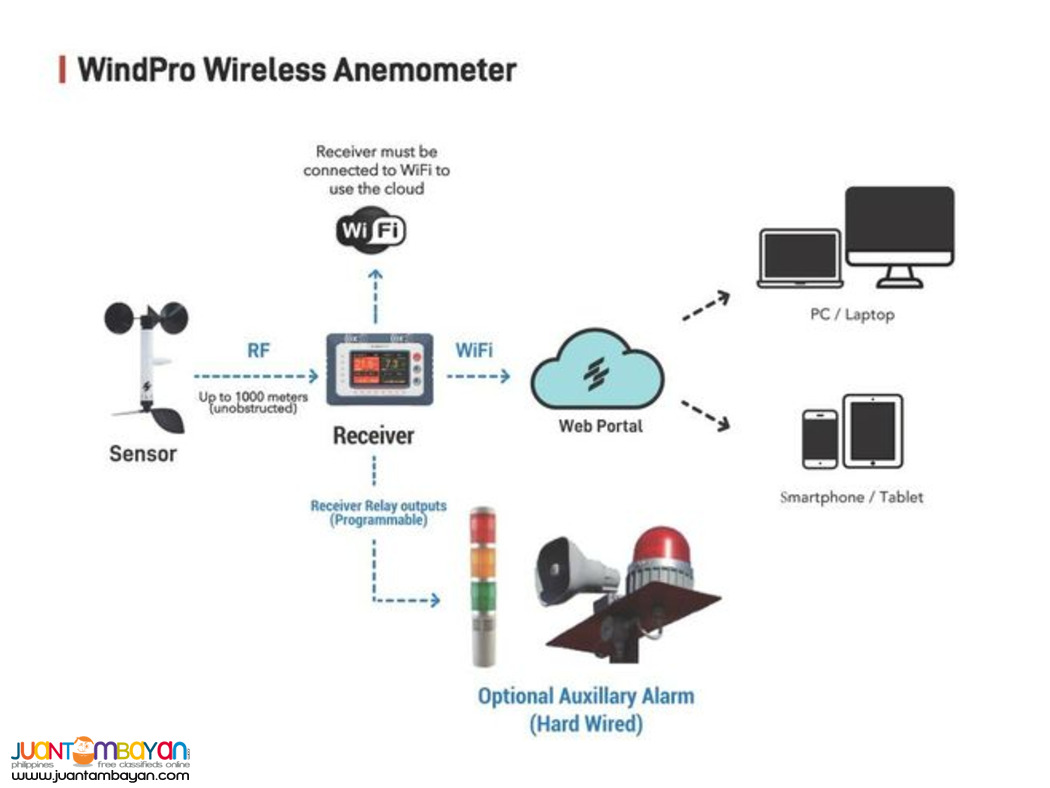

- 1000m ultimate-long wireless transmission
- Data recording in MSExcel
- 4 Levels Custom Wind Alarm
- Various IOT Integration Options
- Max 3 years sensor battery life
- IP67 waterproof & impact resistant
- Fast & secure magnetic installation kit
Applications:
- Cranes & Construction
- Marine, Ports& Offshore
- Film Production & Outdoor Entertainment
- Scaffolding & Temporary Structure
- Rigging & Communications Industry
- Wind Farm & Turbine
Specifications:
Frequency: Sub-1GHz Wireless Technology
Distance: Max 1000m (unobstructed)
Power Supply: 3.6V Lithium Battery x1 (Sensor), AC/DC Adapter (Receiver)
IP Protection: IP67
Accuracy: ±2% FS, ±1°C, ±4 hPa
Output: 8x Relay (Wind Alarm), 4x 4-20mA (2x Wind Speed and 2x Wind Direction)
Measuring Range:
(Wind): 0.3 to 50 m/s (0.1 resolution)
(Temperature): -30°C to 60°C (0.1 resolution)
(Barometric Pressure): 500 to 1100 hPa
Display Unit:
(Wind): m/s, knots, MPH, and km/hr
(Temperature): C and F
(Barometric Pressure): hPa, mmHg, and BAR

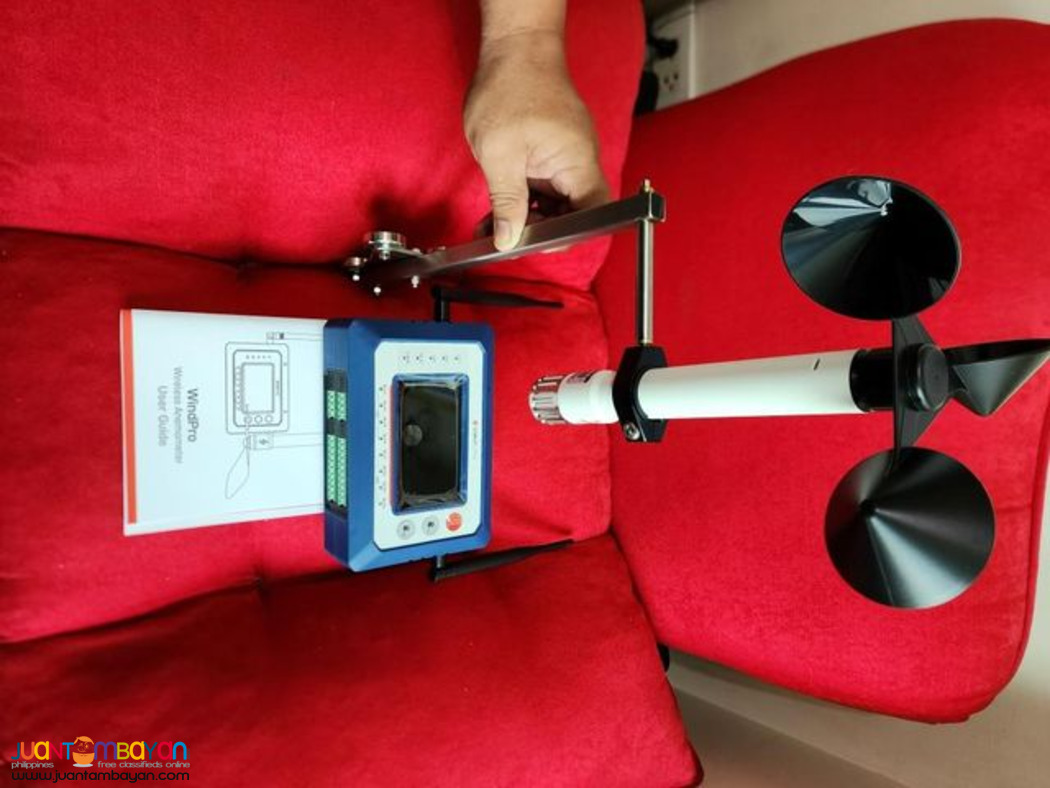

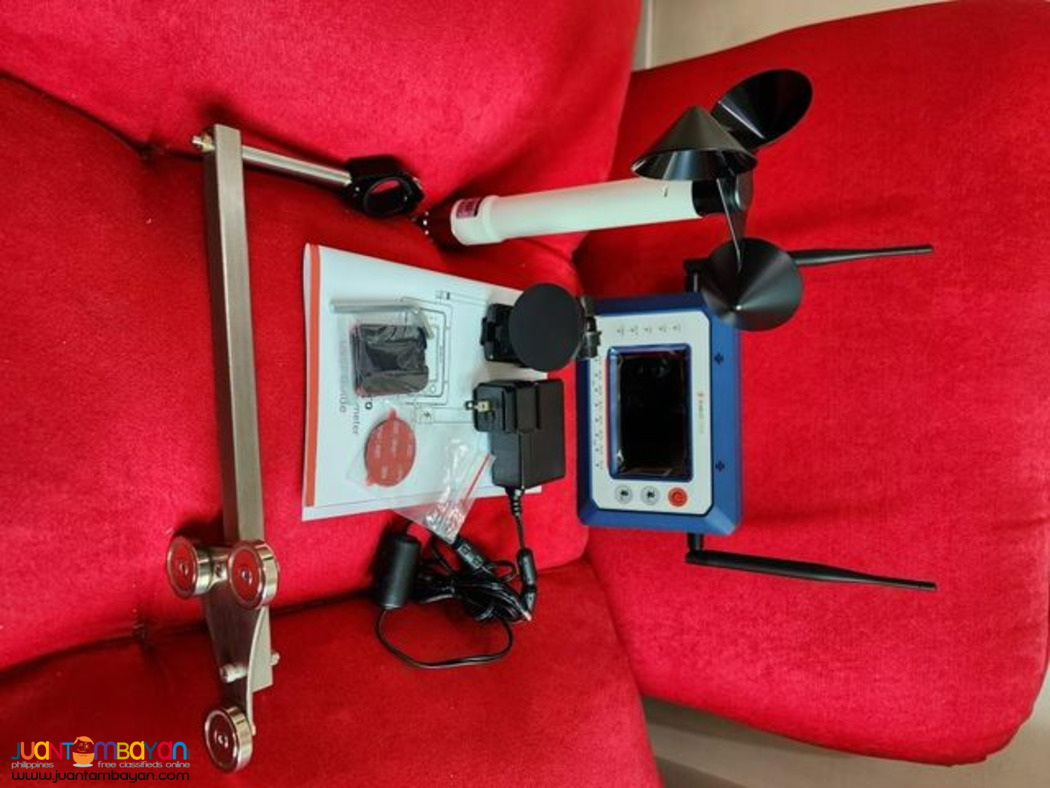

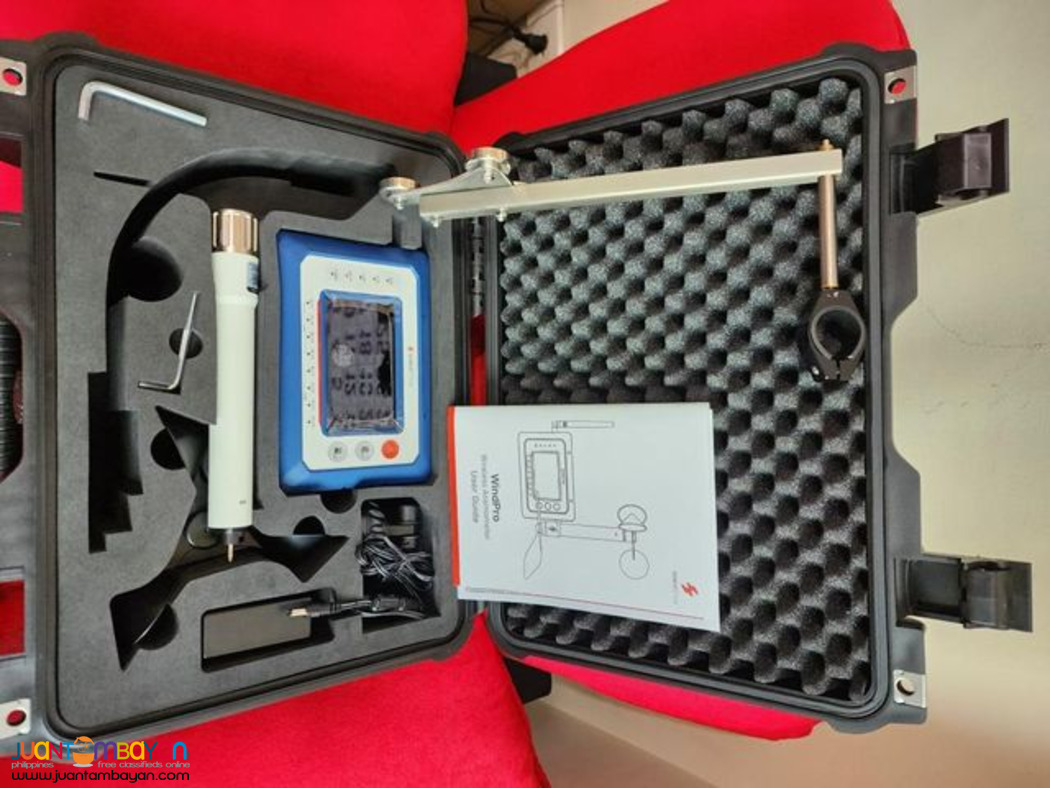

Inclusion:

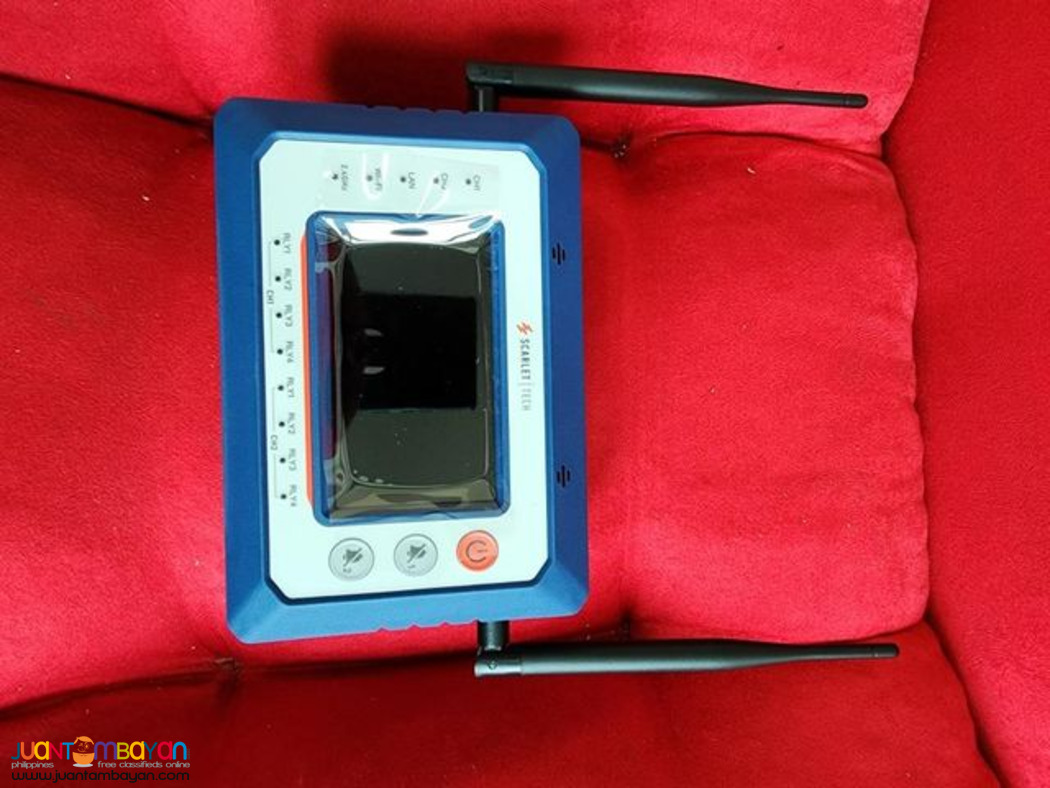

* WindPro console
* WindPro Antenna x2
* WL-21 Sensor
* Wind Cups

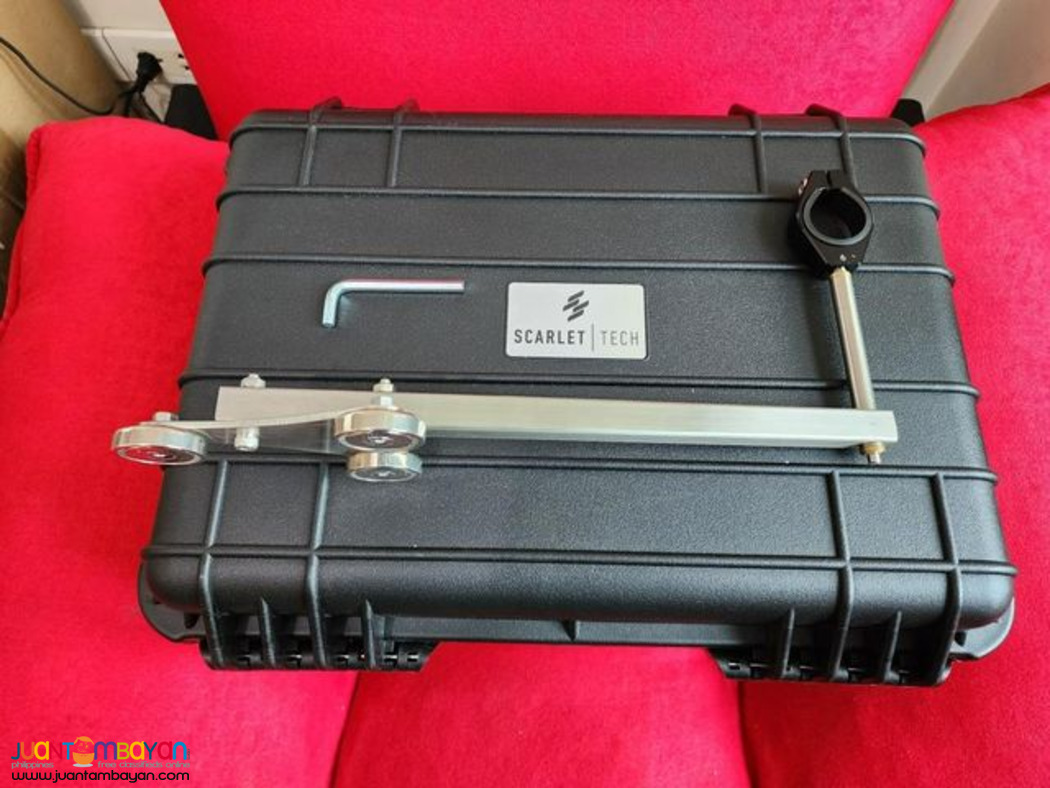

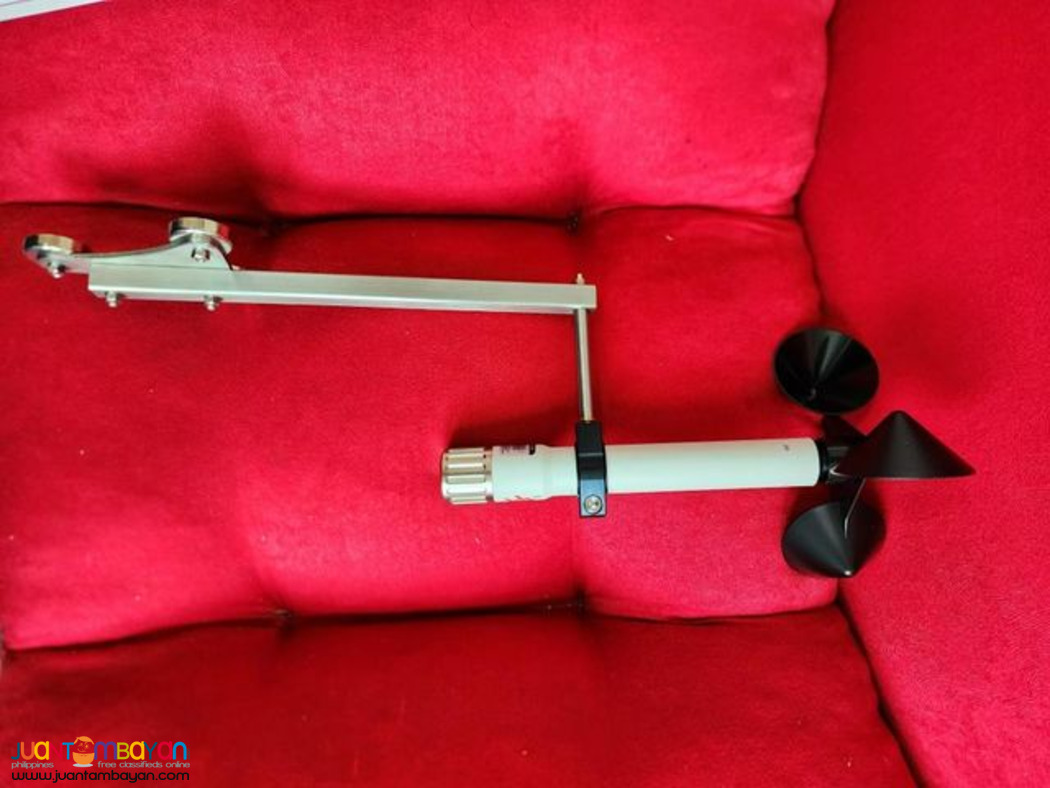

* Magnetic Sensor Mounting bracket & L-shape Hex Key
* Magnet Holder Kit & Quick Release Coupler for WindPro console
* Power Adapter
* User Manual & CoC
