Portable Magnetic Drilling and Tapping Machine MTM-940 Manila

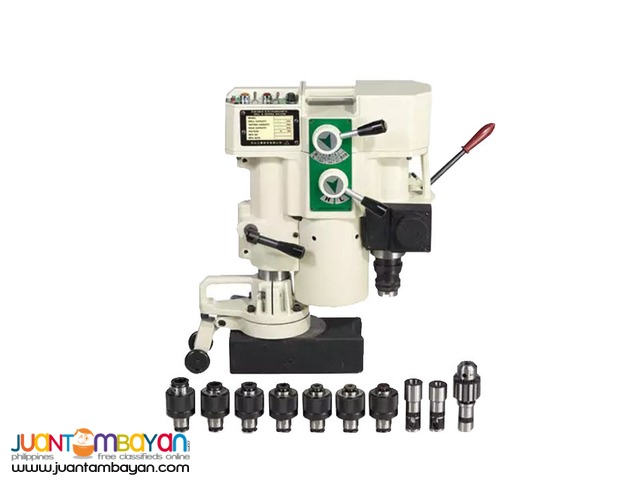

Portable Magnetic Drilling and Tapping Machine MTM-940











Product Features




  • The rovolving speed is changeable during the machine is being operated. The gears are safe absolutely.

  • The total maximum height is 570m/m. Design of motor and gear box makes the point gravity center become only 280m/m. As the center of gravity is quite low and hard to be fallen, the magentic foundation can attain its function and efficiency.

  • The distributor disc is located on the top of machine which prevent it from being fallen or destroyed.

  • MTM-930A & MTM-922A with six-step speed variable (max. revolving speed: 756min revoling speed:51) depends on the hardness of processed objects and size of hole which makes the operator more comfortable to select the revolving speed.












































































Model



MTM-940



Drill Capacity



5/8"~1-1/2"
16Ø ~38Ø



Tapping Capacity



5/8"~1-1/2"
16 Ø ~38Ø



Power



220V
3-Phase



HP



2-1/2



R.P.M.



686 404
268 165
165 97
65 38



Max Depth



130



Body Stroke



200



Transvers al Move



20



Turning Degree



330°



Electro Magretic



155x280



Electro Magretic Force



3000kgs



Height



730



Torsion Fixture Standard Fitting



8



Drill Sleeve Standard Fitting



3



Fittings Weight



16



Machine Weight



100
