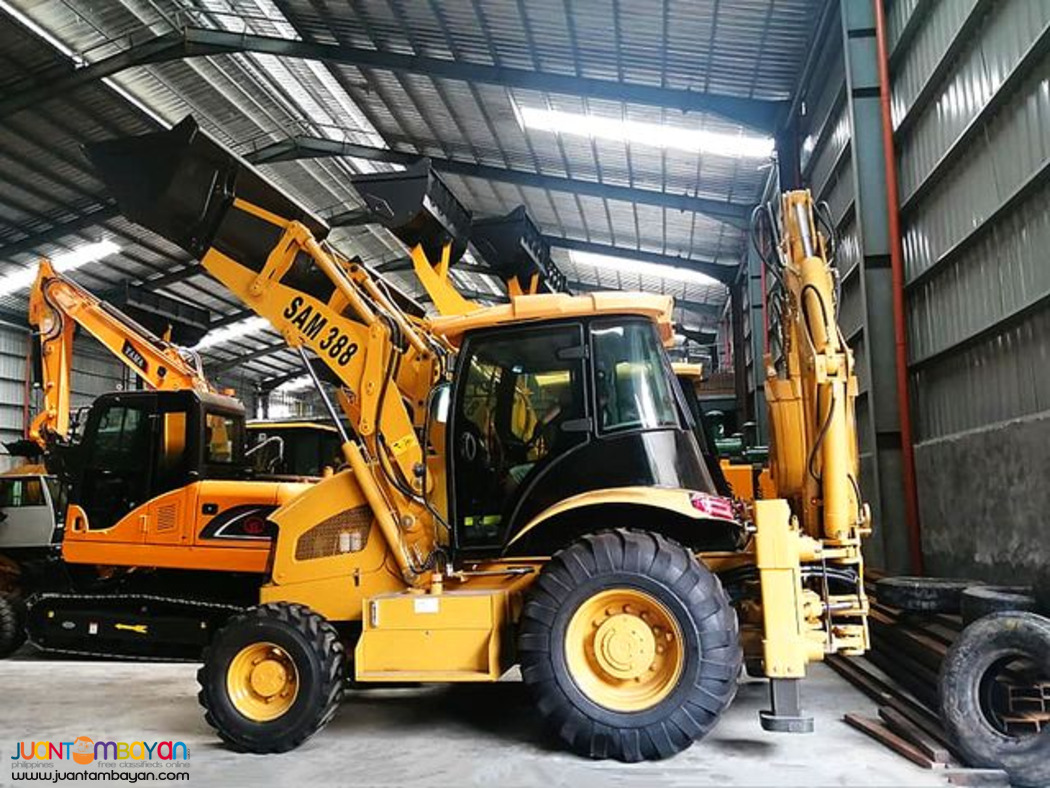

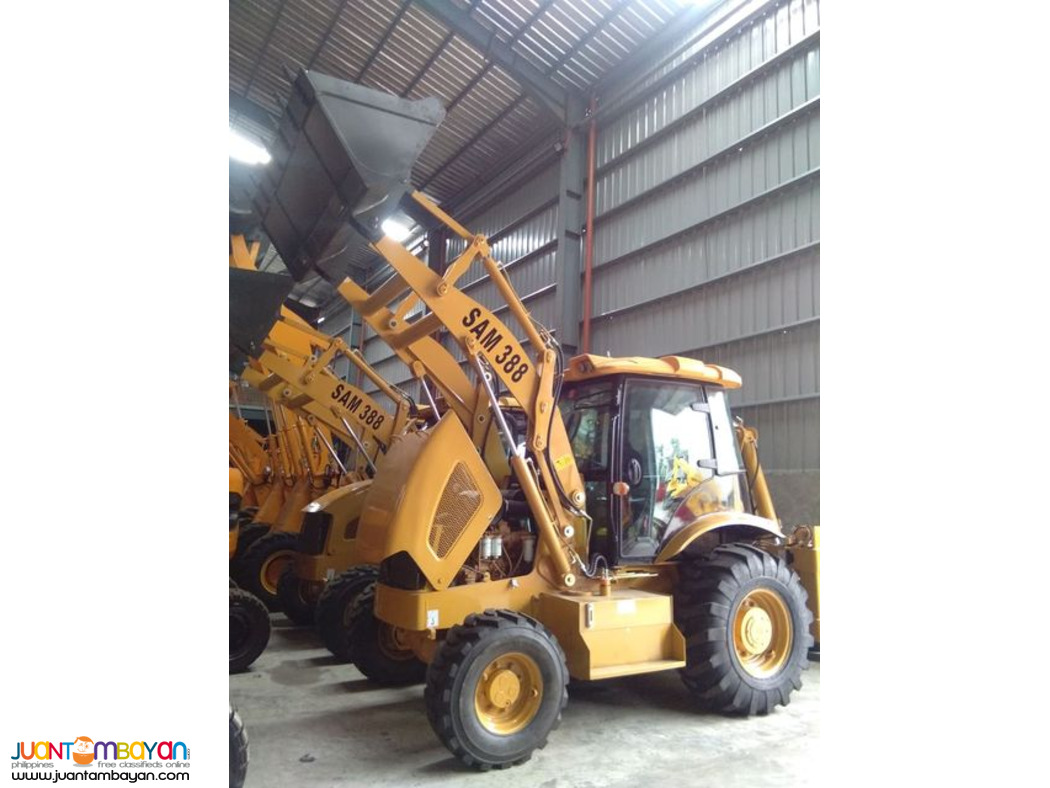

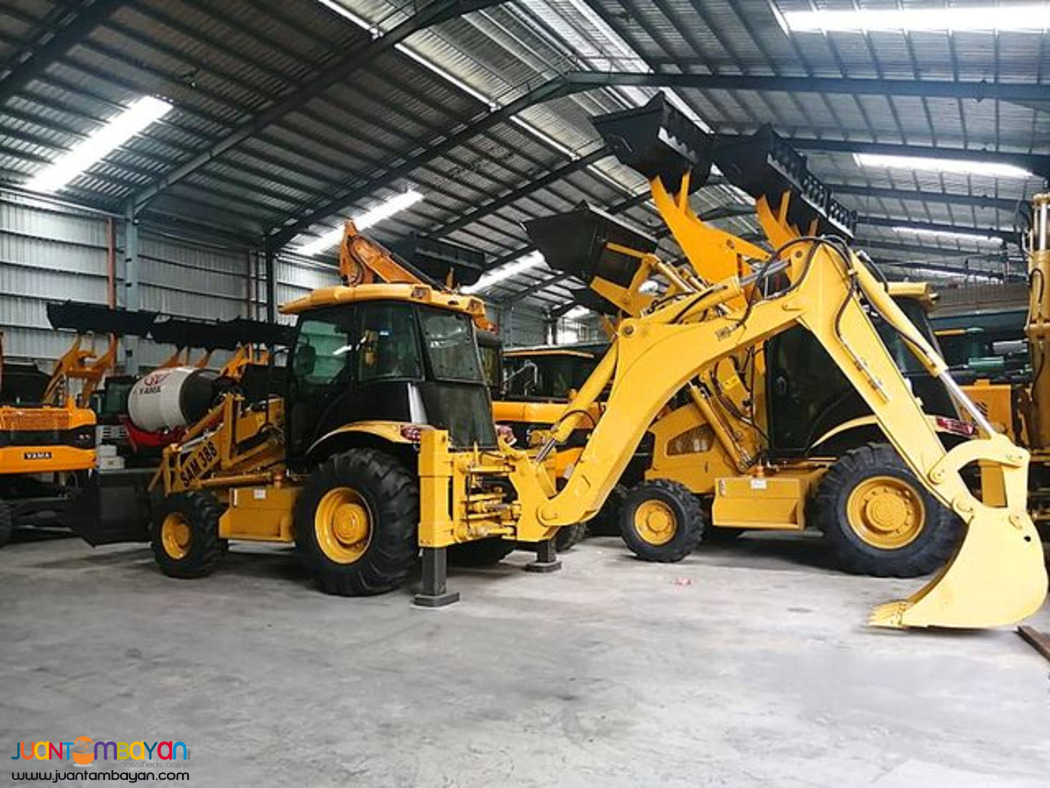

BACKHOE LOADER SAM388

Specifications
Overall Dimension: LxWxH: 6230 x 2365 x 3752 mm
Wheelbase: 2250 mm
Min. Ground Clearance: 300 mm
Main Technical Specification: Four Wheel Drive, Whole Hydraulic System
Loading Bucket Capacity: 1 mᶟ
Breakout Force: 38 KN
Loading Lifting Capacity: 2500 kg
Dumping Height: 2650 mm
Dumping Reach: 1025 mm
Loading Cutting Depth: 52 mm
Backhoe Bucket Capacity: 0.3 m³
Max. Digging Depth: 4085 mm
Digging Slewing Angle: 190°
Max. Tractive Force: 39 KN
Diesel Engine: Model: Yuchai YC4A105Z-T20
Type: Turbo Charging Four-stroke
Rated Power: 75 kw/ 100 HP
Rated Speed: 2400 r/min
Cylinder-internal Diameter: 4-108x132
Max. Torque: 400 N.M
Min. Fuel Consumption: 235 g/kw.h
Displacement: 4.3L
Transmission System Torque Converter
