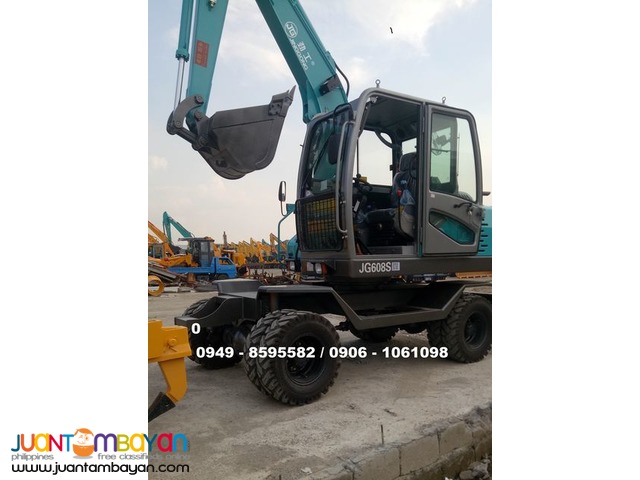

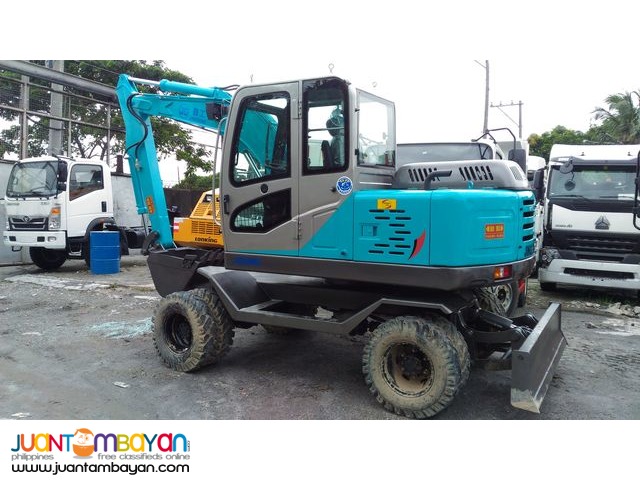

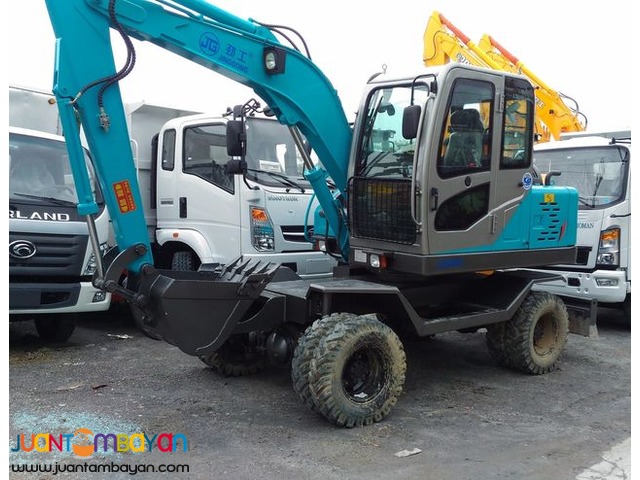

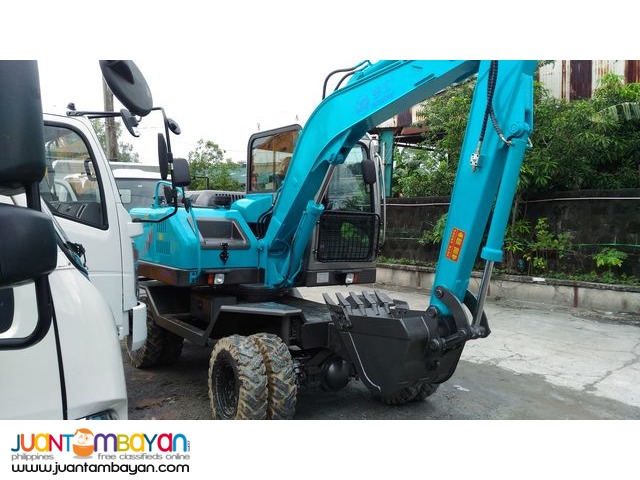

UNIT JINGGONG JG608S WHEEL TYPE EXCAVATOR

  • UNIT JINGGONG JG608S WHEEL TYPE EXCAVATOR
  • UNIT JINGGONG JG608S WHEEL TYPE EXCAVATOR
  • UNIT JINGGONG JG608S WHEEL TYPE EXCAVATOR
  • UNIT JINGGONG JG608S WHEEL TYPE EXCAVATOR
  • UNIT JINGGONG JG608S WHEEL TYPE EXCAVATOR


ITEM 1 ONE (1) UNIT JINGGONG JG608S WHEEL TYPE EXCAVATOR
PRICE : 1800000.00 CASH



WE SUPPLY TO L.G.U and CERTIFED PHILGEPS MEMBER




RANGE OF OPERATION
Boom length 3030mm
Arm length 1860mm
Max. digging reach 6000mm
Max. digging depth 3380mm
Max. digging force 45kN
Max. digging height 5800mm
Max. dumping height 4300mm
Back-end radius of gyration 1775mm
DIMENSIONS
Distance from the arm to rotate machine 3600mm
(L*W*H) travel position 5200mm*2100mm*2650mm
Ground clearance of counterweight 730mm
Minimum ground clearance 360mm
TECHNOLOGY PARAMETERS
Angle of rotation 360°
Machine weight 6000kg
Engine type SL/4100ABK/498BPG
Hydraulic system working pressure 19.5Mpa
Nominal capacity 43kW/55HP/48kW
Rate of travel/travel speed 9-36km/hr
Max. hauling force 60kN
Pressure of the ground 52Kpa
Gradeability 58%/30
Full circle swing time 5.5s
Volume of backhoe 0.2-0.3
Revolution overdrive pressure 11mPa
Fuel quantity 4≥L/H
Capacity of the fuel tank 130L
Hydraulic tank capacity 110L


Bank financing : PHP 1,850,000.00
CASH : Php 1,800,000.00


Warranty : For Heavy Equipment: 2000 hrs. or 1-year warranty Service & parts
: For Trucks: 60000 Km or 1-year warranty Service & parts
: 3 years LTO registration
Payment Terms : Cash, Bank to Bank Transfer, Online Banking, Bank Financing
Validity : This quotation shall remain valid for thirty (30) days from the date of issuance.
Notes : Price is subject to change without prior notice
: PRICE IS VAT EXCLUSIVE
